AC Infinity Filtration Kit PRO 8"
Inline Fan With Smart Controller, Carbon Filter & Ducting Combo
- An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.
- Features the CLOUDLINE PRO inline fan with a PWM-controlled EC motor for quiet and energy efficient ventilation.
- Smart controller sets triggers, schedules, and grow cycles. Remotely access via WiFi app to enable automation.
- Australian carbon filter with flexible ducting traps odors while routing stale air away from your grow tent.
- Kit Duct Size: 8” | Fan Airflow: 807 CFM | Noise 42 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.
PRODUCT DESCRIPTION

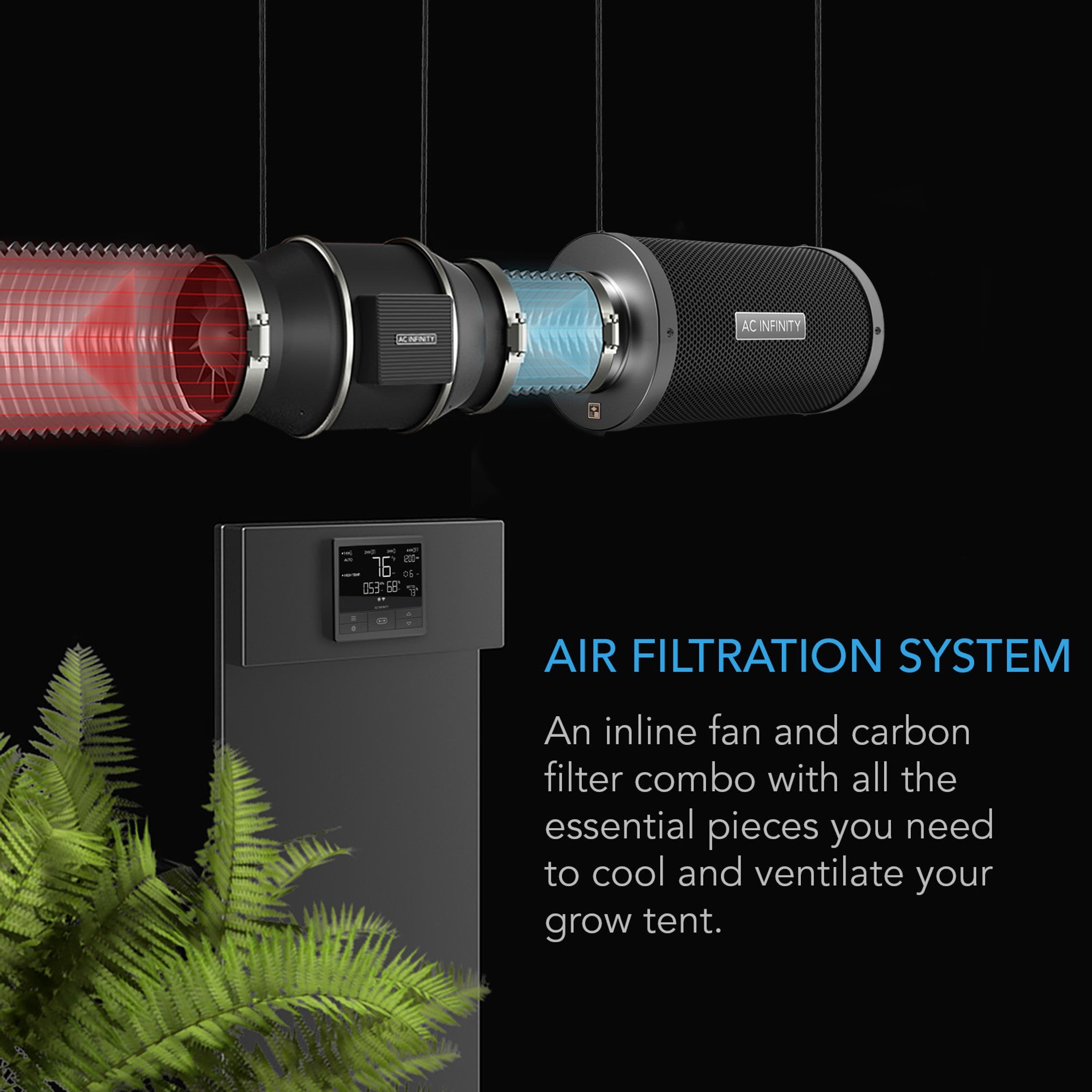

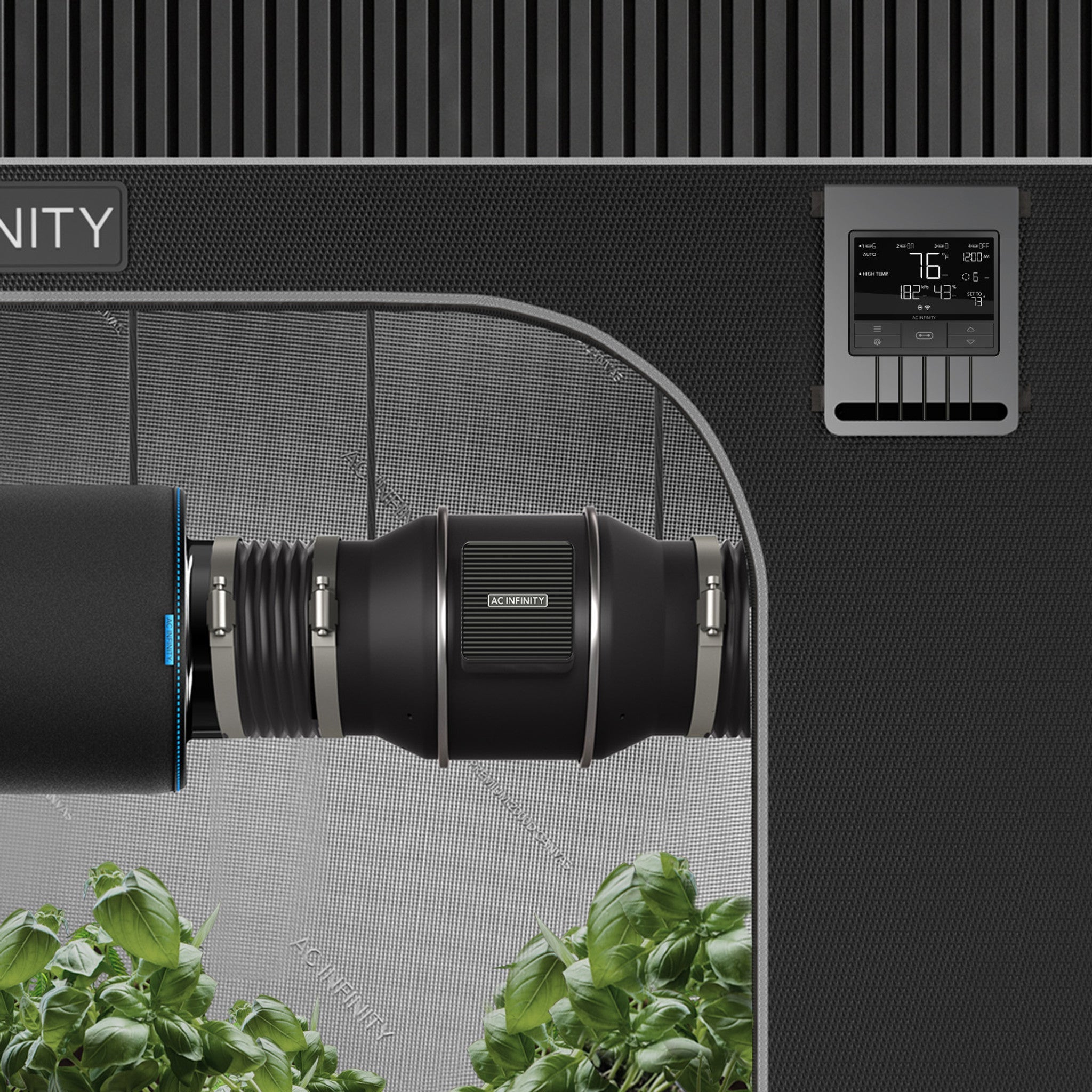

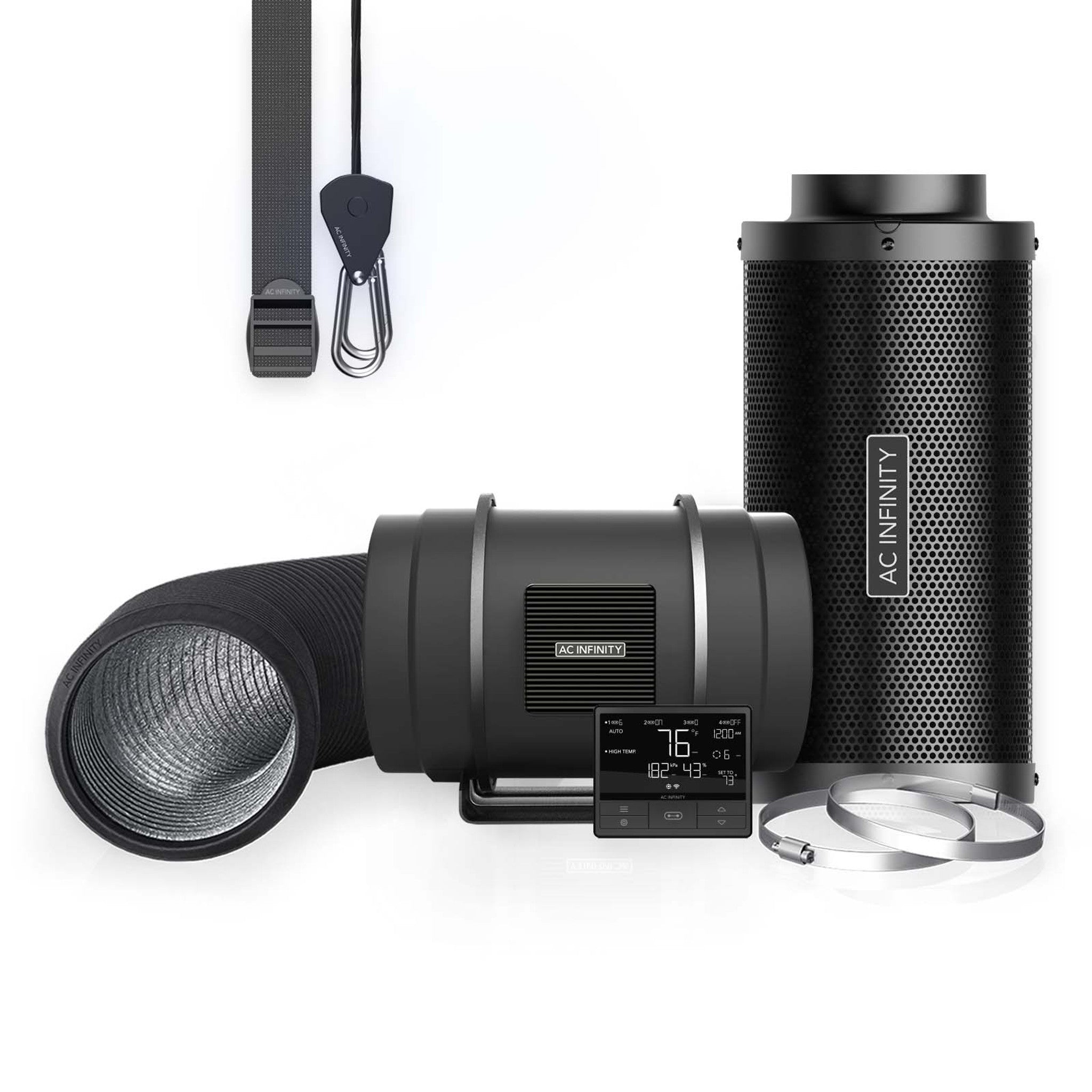

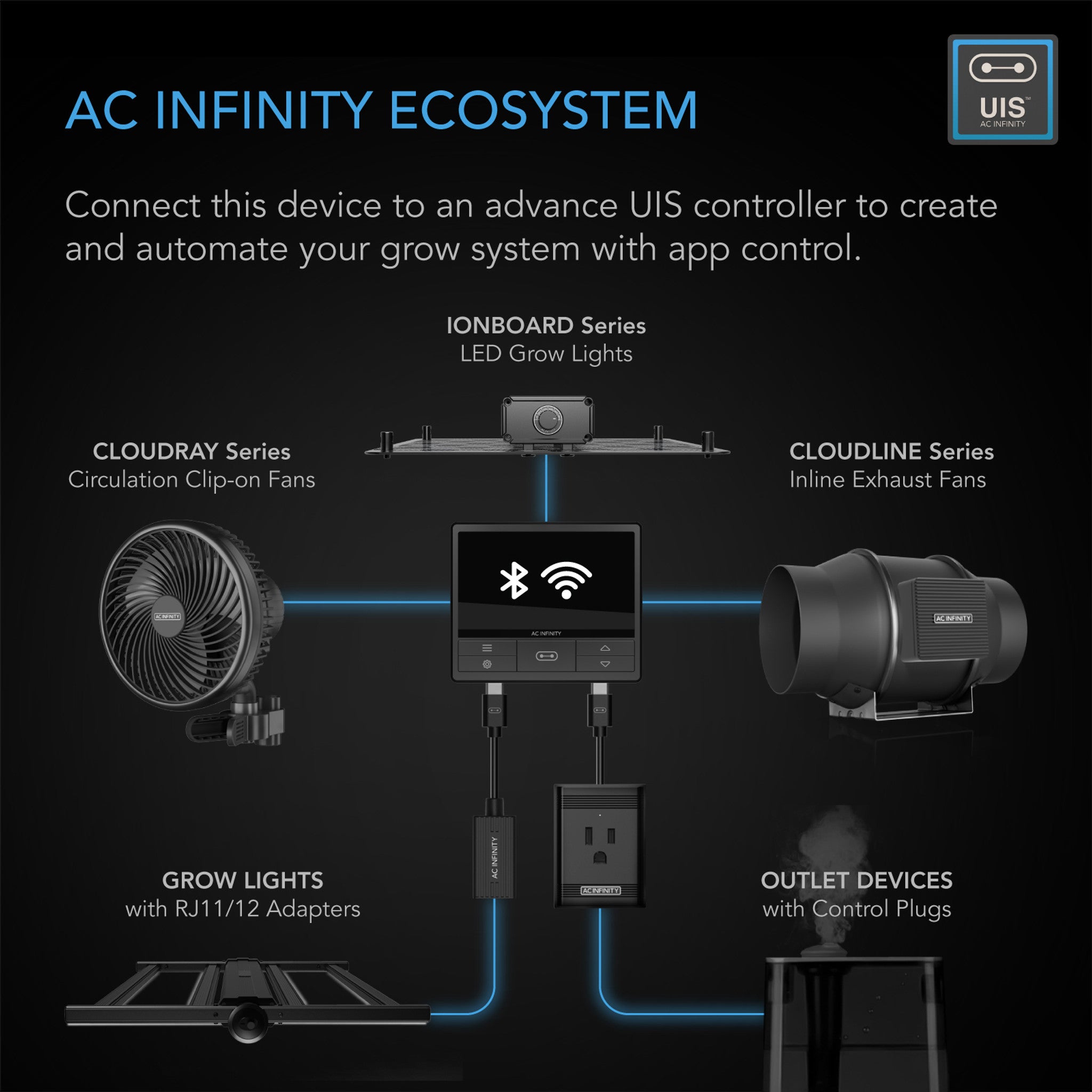

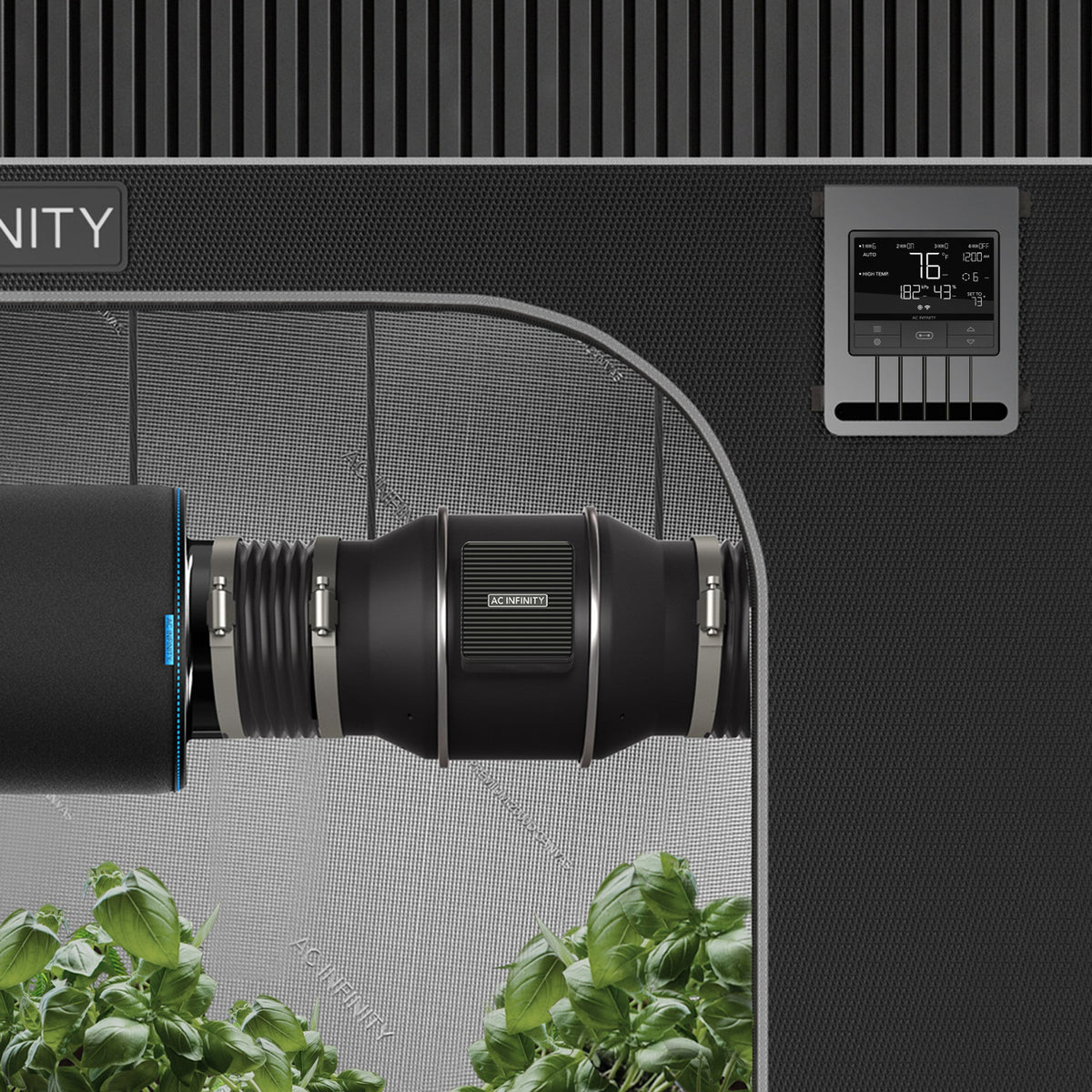

A grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential pieces, this package will help you quickly get your grow build started and eliminate the guesswork of purchasing them individually. This inline fan kit features the CLOUDLINE PRO Series fan that can deliver a powerful yet quieter performance. Paired with a rust-resistant carbon filter with a gunmetal finish using Australian virgin charcoal to block odors from seeping out of your grow tent. These two pieces are connected by a set of flexible ducting with four layers of protection to properly direct airflow. Accessories include duct clamps, prefilter cloth, rope clip hangers, and hanging straps to complete the installation. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

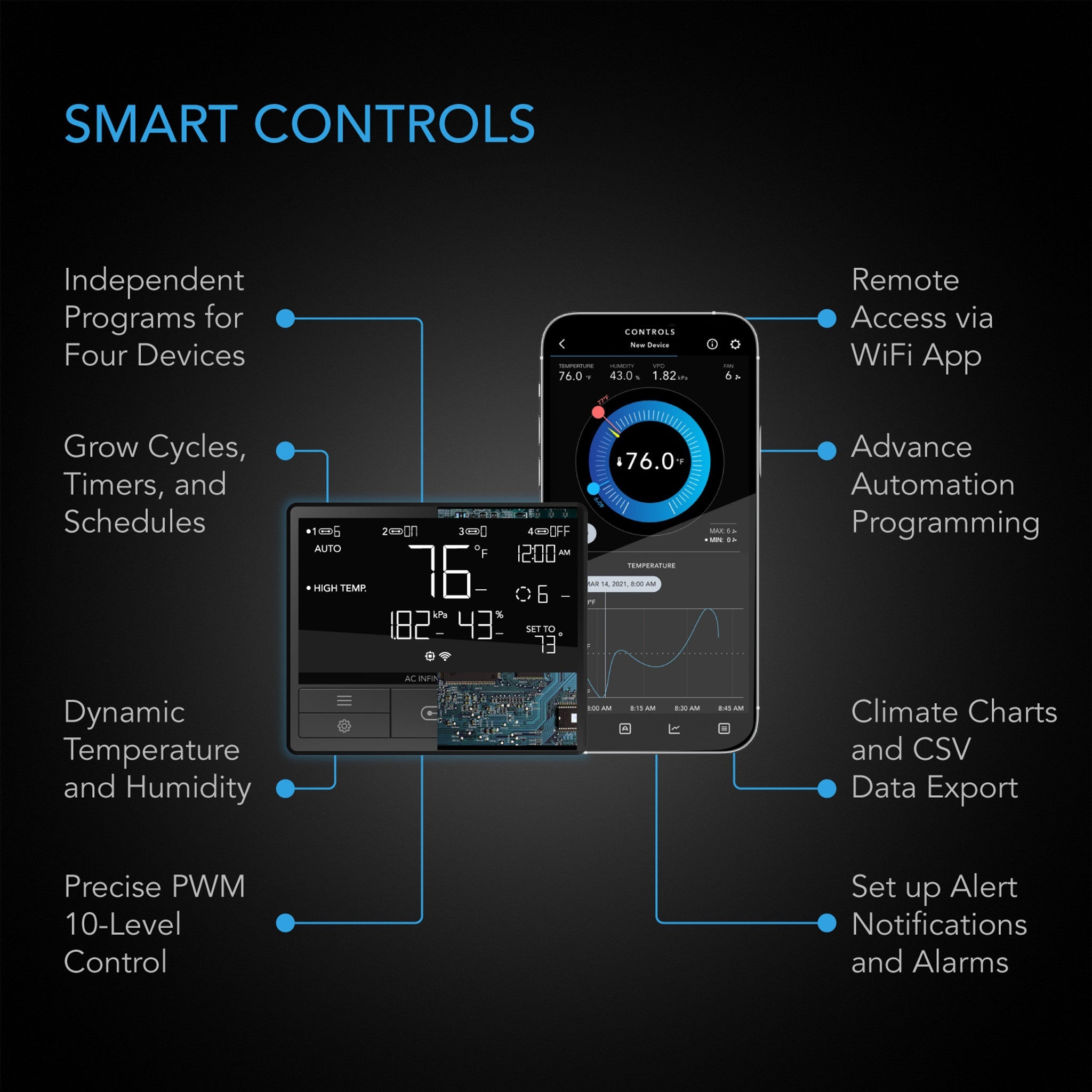

INTELLIGENT PROGRAMMING
CONTROLLER 69 PRO distributes smart programming to the quiet inline fan to keep temperature, humidity, and VPD in check and produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the inline fan running at low speeds for consistent airflow while timer, cycle, and schedule modes add custom on-demand activation. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

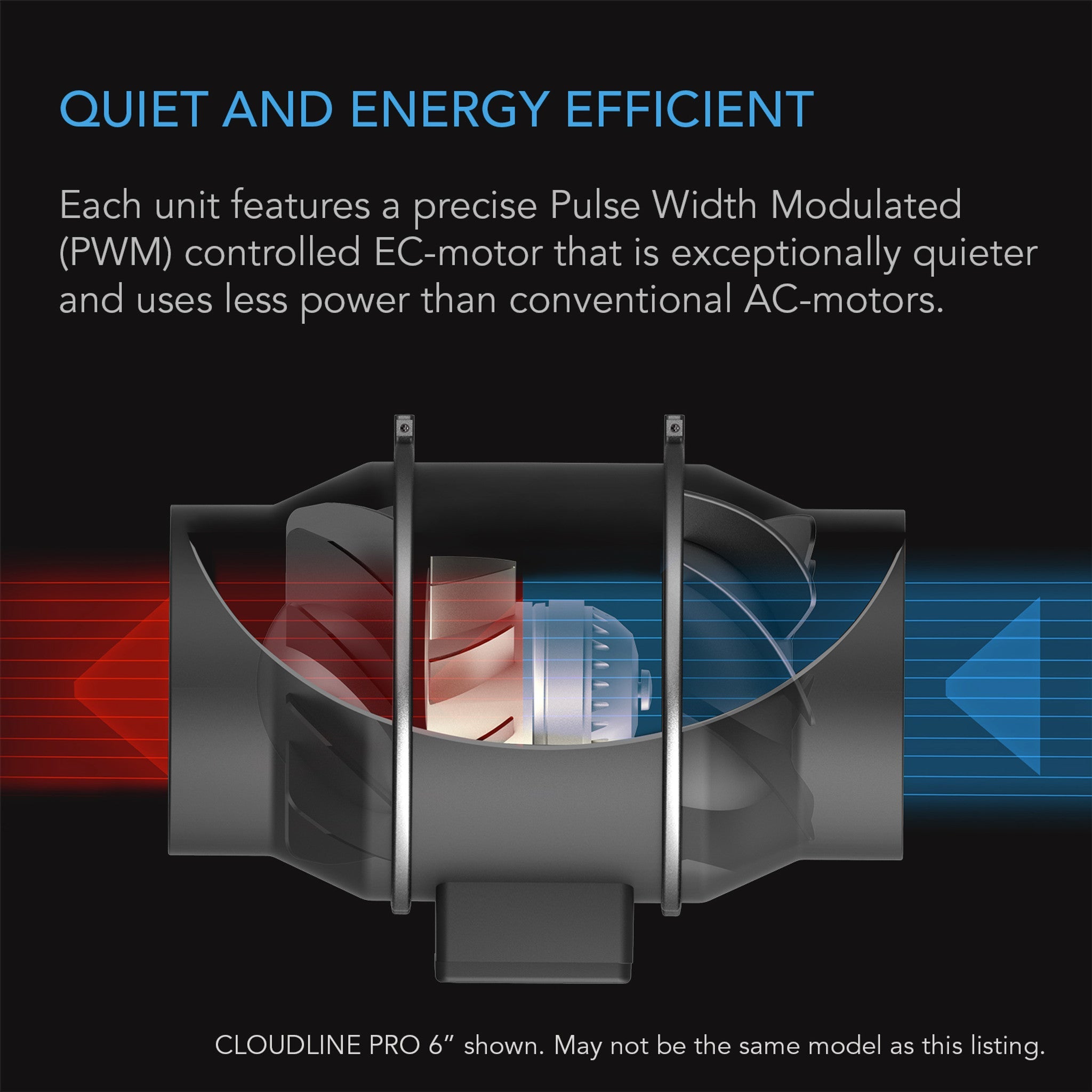

QUIET AND ENERGY-EFFICIENT DESIGN
The included CLOUDLINE PRO Series inline fan features a PWM-controlled EC motor, enabling smooth operation at low RPM speeds with no additional heat or noise. It achieves high-performance airflow fit for grow tents thanks to its mixed-flow design and its use of stator blades and hydrodynamic wind circles. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 sealing that resists dust and splashing liquids.

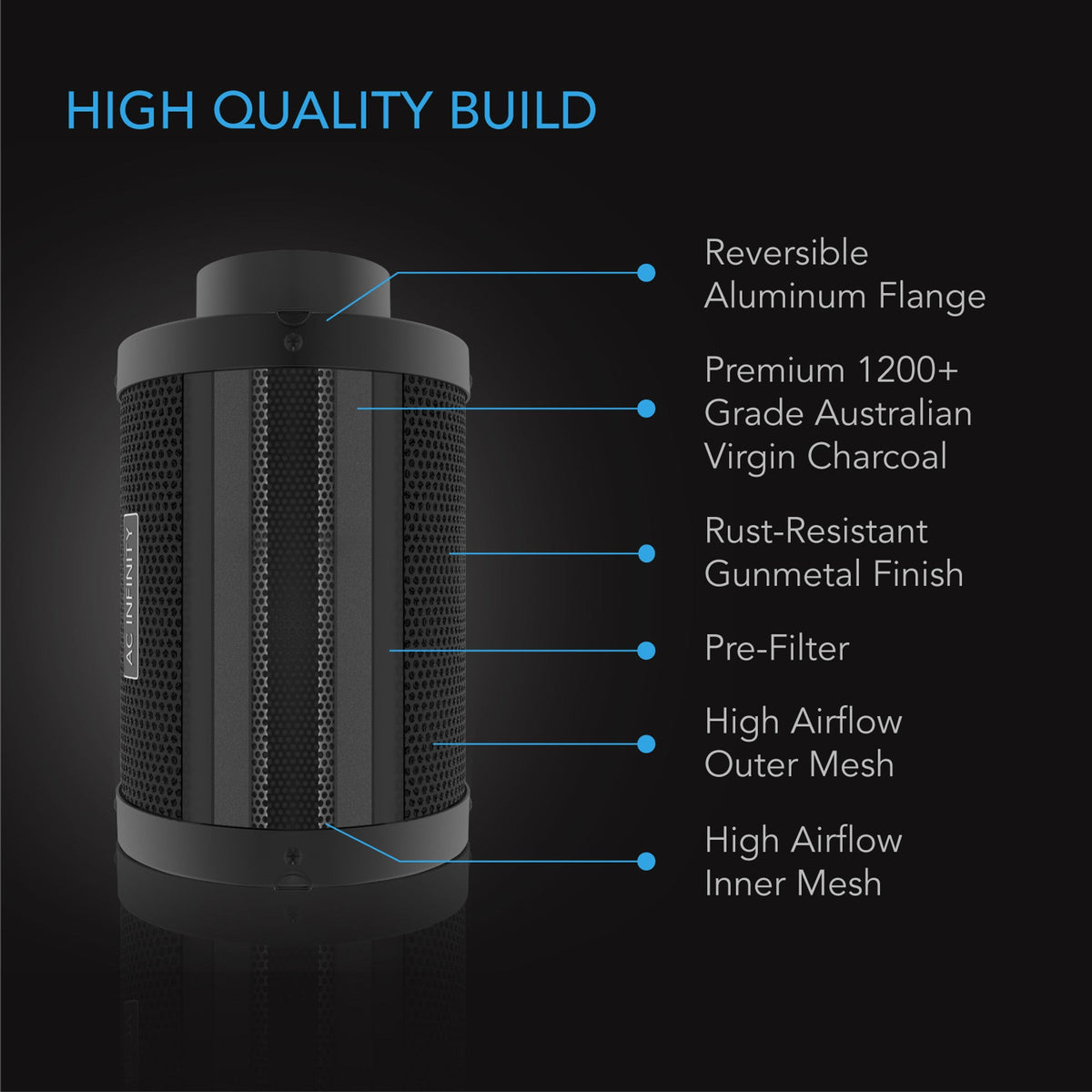

PREMIUM GRADE CARBON

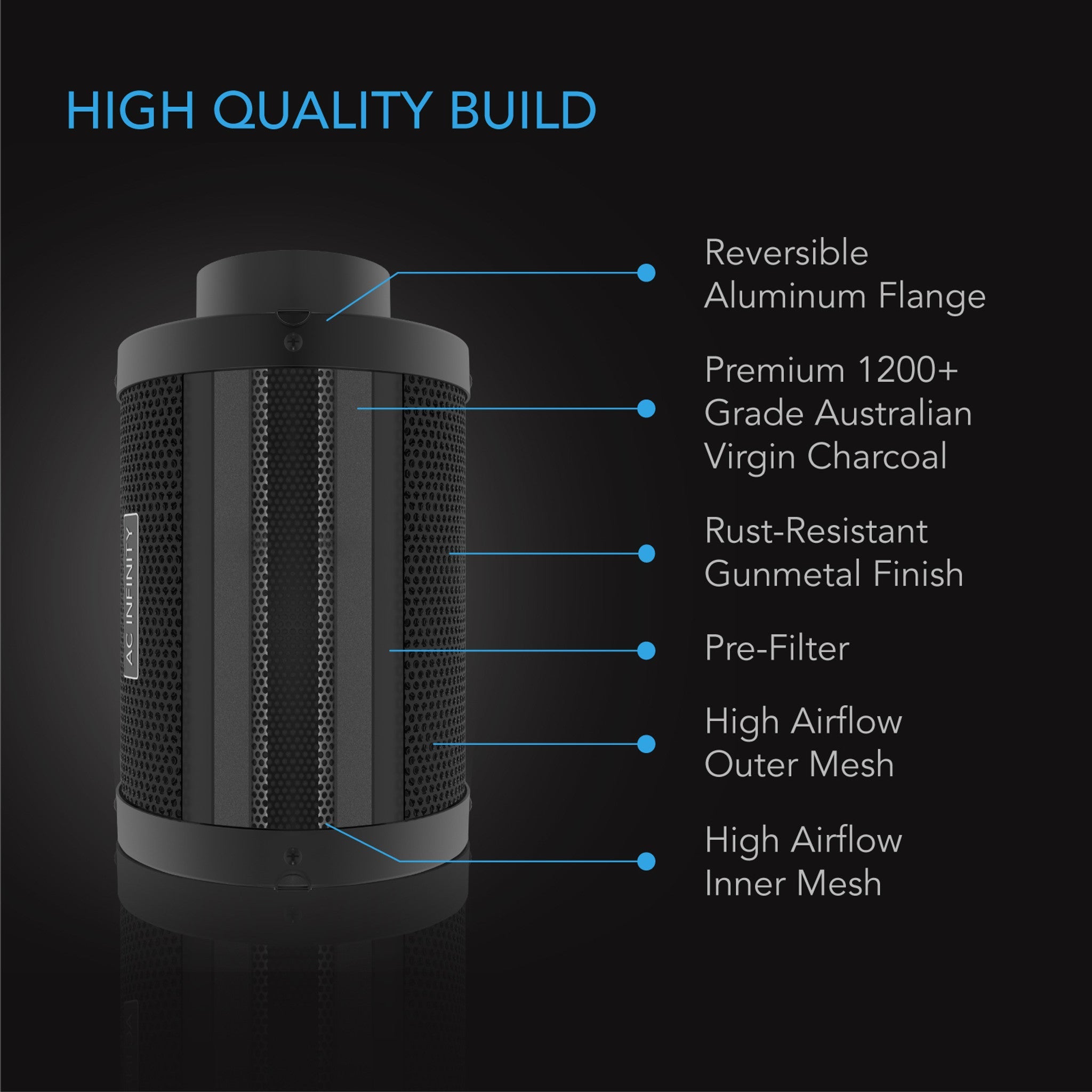

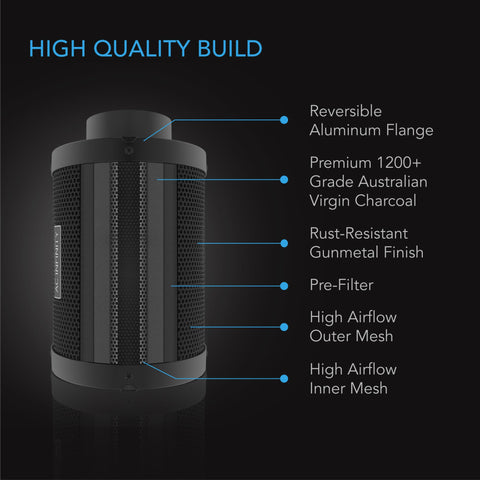

The duct carbon filter effectively blocks out unwanted odors and chemicals using its bed of premium Australian charcoal. Featuring a 1200+ IAV rating, the activated carbon supports clean airflow more efficiently thanks to its increased adsorption rate and extended life rating. The filter’s durable steel mesh body is protected by a powder-coated gunmetal finish to better defend against rust and corrosion in high-humidity growing environments.
| Product Identification |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
Air Filtration Kit PRO 8" |
| Product Model |
AC-FKT8 |
| UPC Code |
819137022980 |
| Product Manual |
Product Manual
|
 PDF |

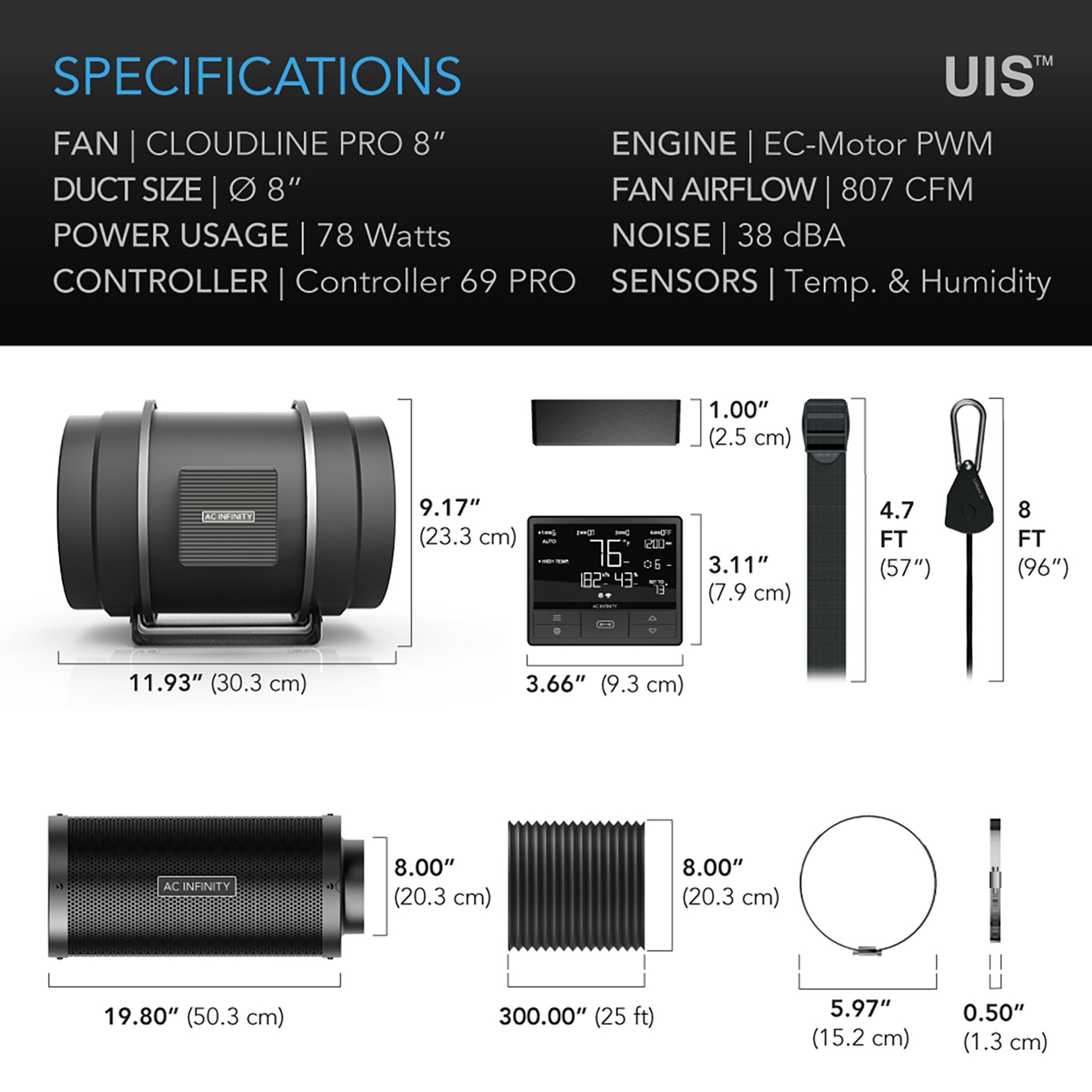

| Product and Mounting Dimensions - Fan Unit |
| Duct Size |
8" |
| Total Dimensions |
8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm) |
| Mounting Hole-To-Hole Distance |
3.94 x 3.70 in. (10.0 x 9.4 cm) |
| Screw Hole Size |
Ø 0.217 in. (Ø 0.55 cm) |
| Cord Length to Controller |
72 in. (6 feet) |
| Cord Length to Plug |
72 in. (6 feet) |
| Product and Mounting Dimensions - Controller |
| Total Dimensions |
5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Product Performance and Technical Specs |
| Total Airflow |
807 CFM |
| Total Noise |
39 dBA |
| Static Pressure |
746 Pa |
| Voltage |
100-240V AC |
| Frequency |
50/60Hz |
| Max Power Draw |
180 W |
| Average Power Usage |
78 W |
| Current |
2.3 A |
| Power Connector Type |
US Plug (NEMA 1-15 Type-A) |
| Operating Humidity |
35 to 85% RH |
| Operating Temperature |
32 to 140°F |
| Ingress Protection |
IP 44 |
| Fan Bearings |
Dual Ball |
| Mounting Positions |
Horizontal or Vertical |
| L10 Life Expectancy |
67,000 Hours |
| Fan Quality Approvals |
CE, RoHS |
CE Certification (Whole Product)
|
PDF |
RoHS Cert. (Whole Product)
|
PDF |
| Product and Mounting Dimensions - Carbon Filter |
| Duct Opening Size |
8" |
| Total Dimensions |
19.8 x 10.94 in. (50.3 x 27.8 cm) |
| Flange Length |
3.39 in. (8.6 cm) |
| Product Performance and Technical Specs - Carbon Filter |
| Flange Material |
Aluminum |
| Flange Design |
Reversible |
| Mesh Material |
Galvanized Steel |
| Carbon Type |
Australian Virgin RC412 |
| Carbon Grade |
1200+ IAV |
| Carbon Thickness |
38mm |
| Maximum Airflow |
770 CFM |
| Product Dimensions - Ducting |
| Ducting Size |
8 in. (20.3 cm) |
| Length |
300 in. (25 ft) |
| Product Performance and Technical Specs - Ducting |
| Outer Layer |
PVC Thermoplastic |
| Inner Material |
Aluminum Foil |
| Internal Structure |
Spiral Steel-Wire |
