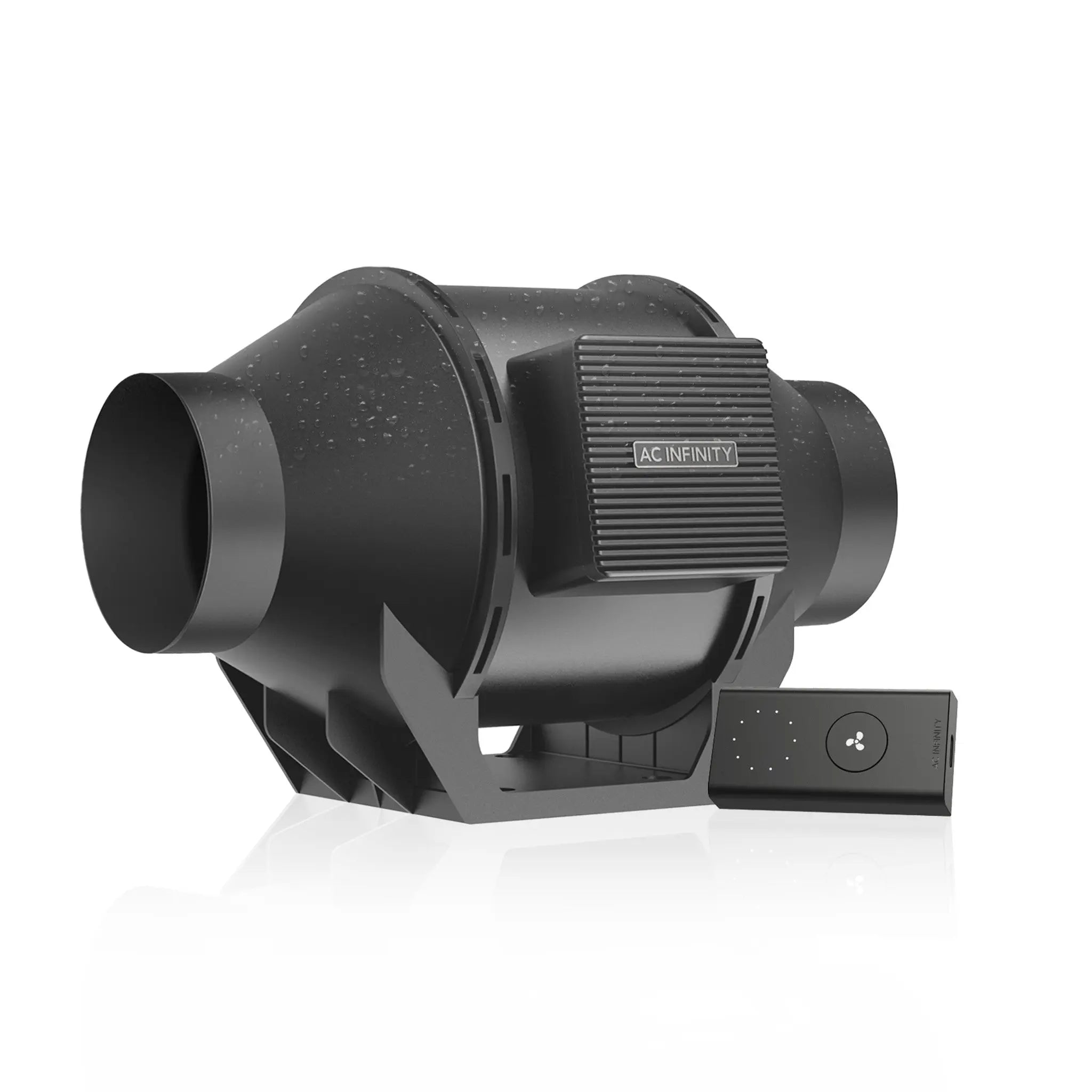

AC Infinity CLOUDLINE H4

Humidity-Proof Inline Fan 4" with Speed Controller

• Specially designed for mushroom growing to quietly ventilate grow spaces and help control indoor climate levels.
• IP65-rated to ensure performance in high-humidity spaces while resisting dust, debris, and moisture.
• Includes a fan speed controller with precise 10-level control for exact airflow and CO₂ buildup prevention.
• EC motor with PWM control enables quiet and energy-efficient performance for consistent fresh air exchange.
• Duct Size: 4" | Dimensions: 6.9 x 11.9 x 7.4 in. | Airflow: 212 CFM | Noise: 27 dBA | Bearings: Dual Ball
•

  Product Description

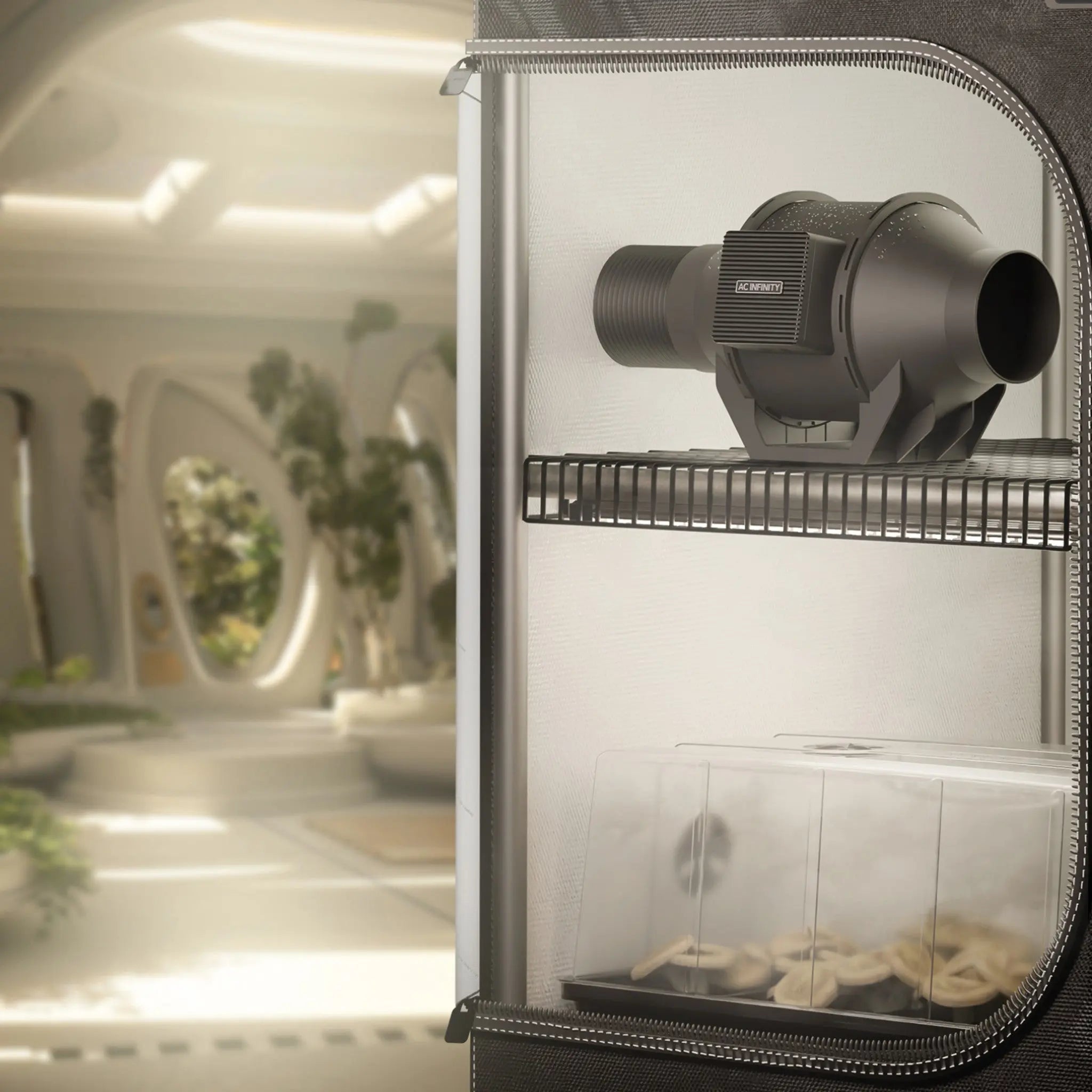

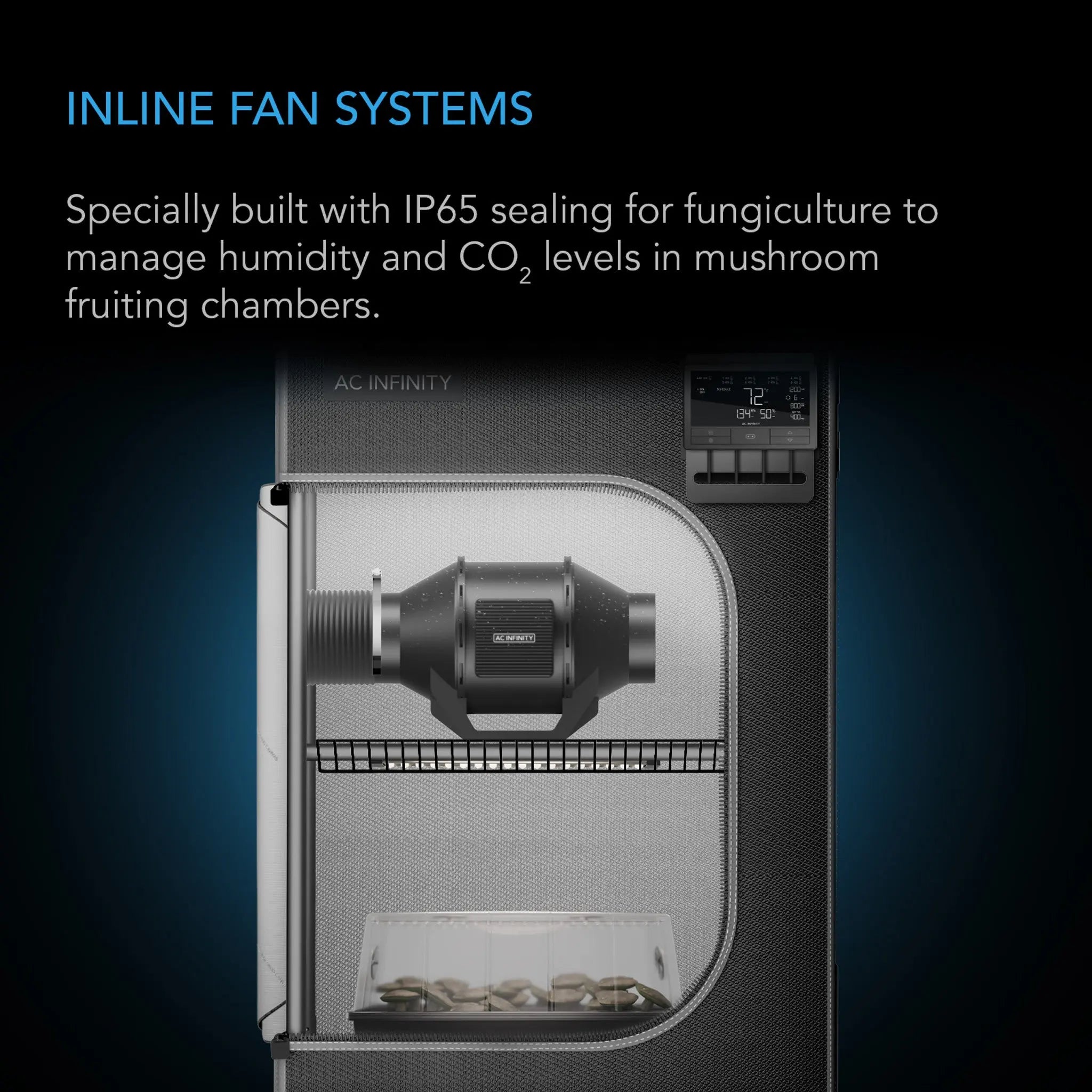

  An inline duct fan specially designed for mushroom cultivation and fungiculture to quietly ventilate grow tents, grow rooms, and mushroom fruiting chambers. By installing this fan, you can control humidity and CO₂ levels to keep them stable while ensuring fresh air exchange in these spaces. It is built with IP65-level sealing that lets you place it in harsh environments, resisting moisture and spores. It also features a fan speed controller with 10 exact levels to produce your ideal airflow. This precision output is powered by the inline fan’s EC motor that utilizes PWM control to operate quietly and energy-efficiently. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

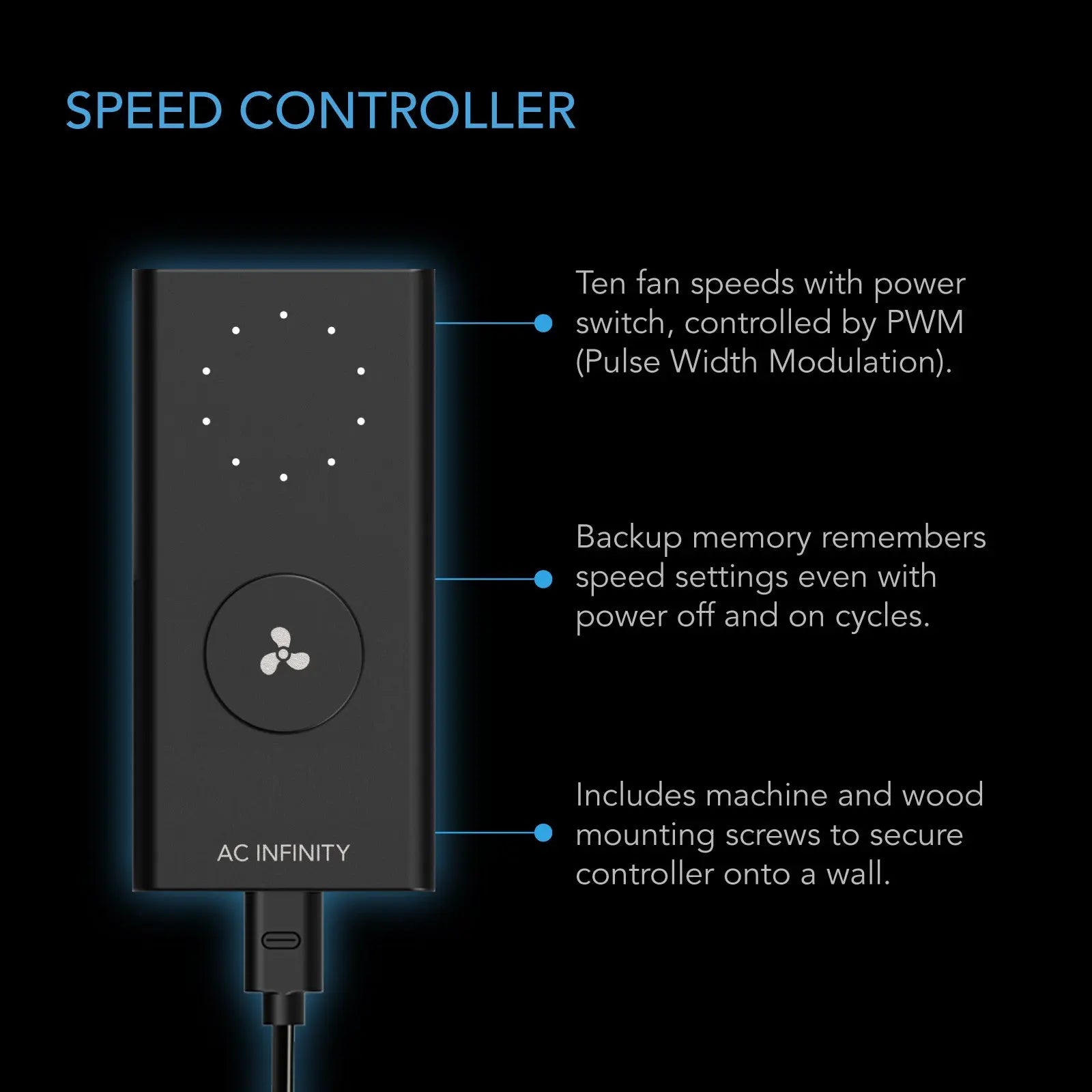

  Precise Speed Controller

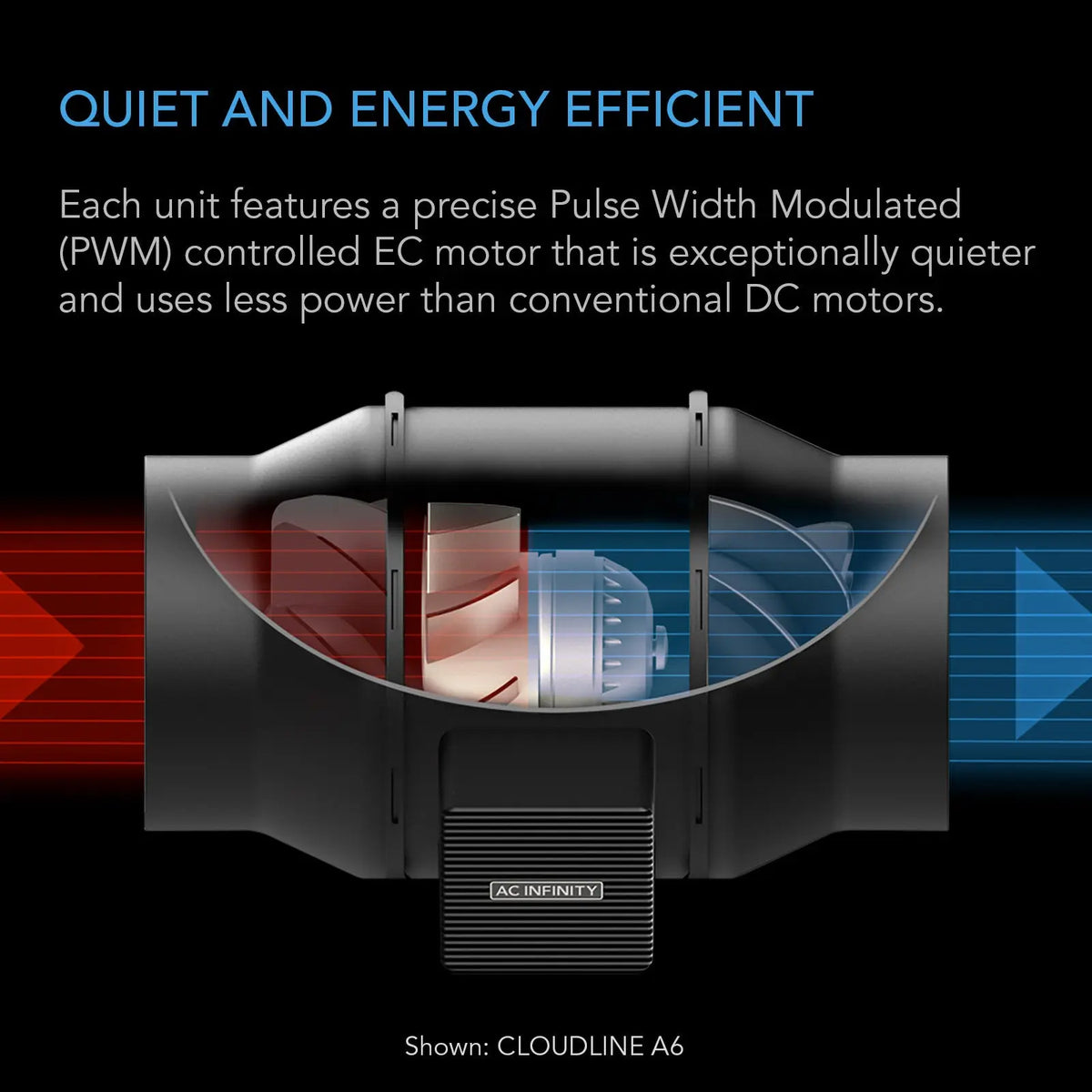

  The speed controller lets you set between ten precise fan speed levels to optimal noise and airflow levels in mushroom-growing environments. This exact airflow control is enabled by the cutting-edge EC motor that is precisely controlled using PWM (Pulse Width Modulation). This allows it to run smoothly at extremely low RPM speeds without generating motor noise. It also features backup memory that retains the last speed setting whenever power is cut off from the controller.

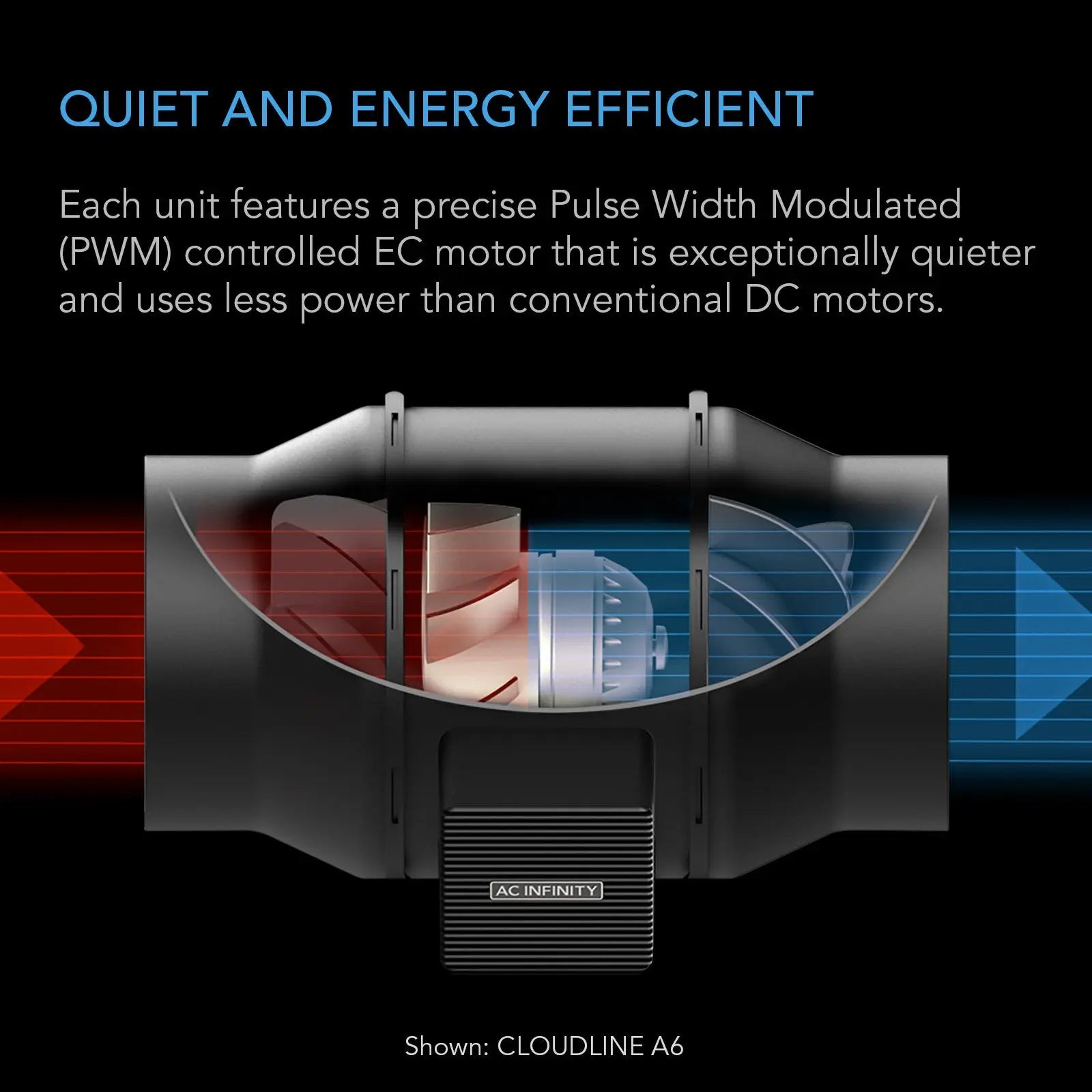

  Quiet and Energy-Efficient Design

  This inline fan utilizes a mixed-flow design with a stator blade and dual hydrodynamic wind circles, enabling it to deliver airflow even in applications where air movement is restricted. In addition, it is built with dual ball bearings that have a 67,000-hour lifespan, allowing you to mount it in any direction. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance.

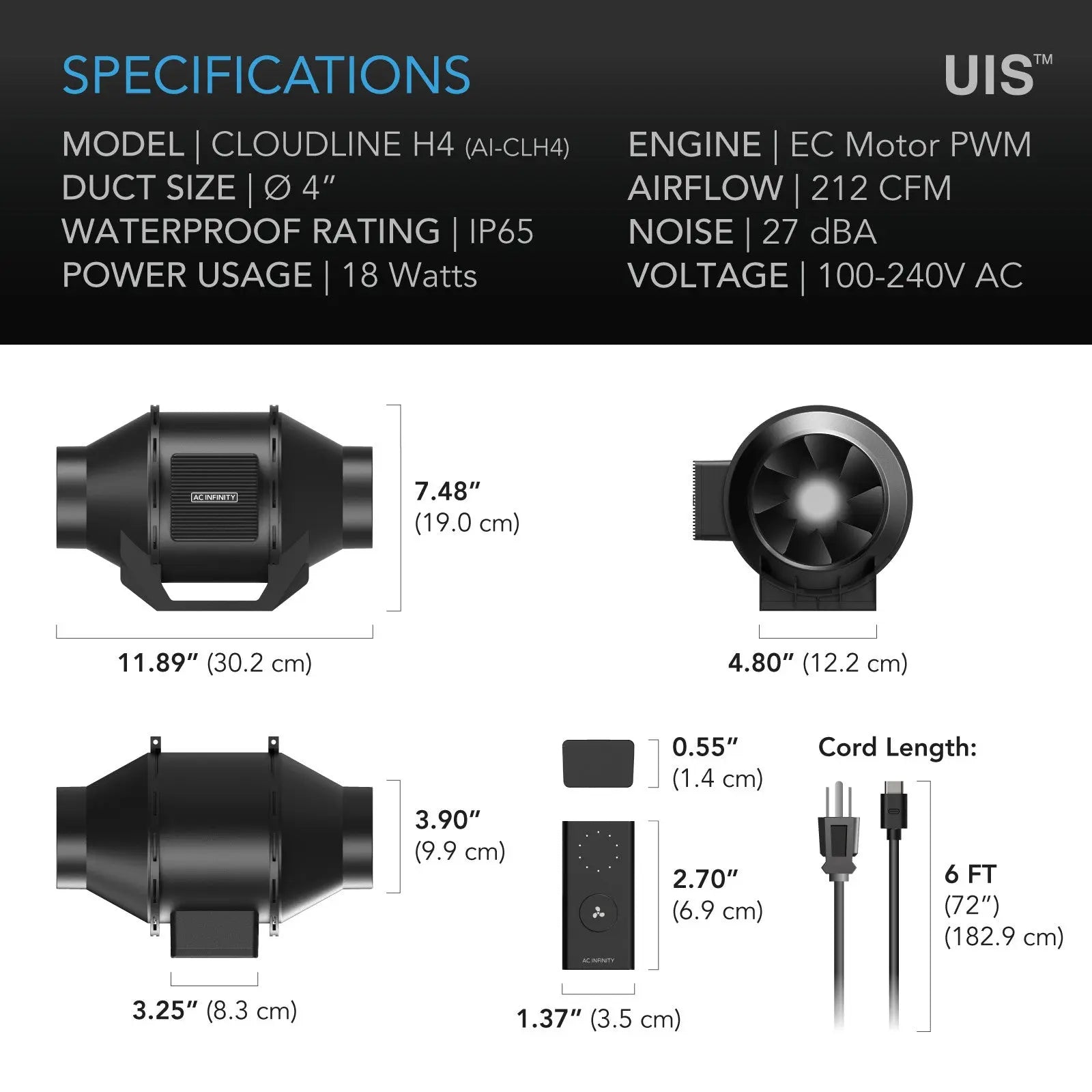

Product and Mounting Dimensions - Fan Unit
Duct Size	4"
Total Dimensions	7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
Mounting Hole-To-Hole Distance	3.15 x 2.36 in. (8.0 x 6.0 cm)
Screw Hole Size	0.197 in. (0.5 cm)
Cord Length to Controller	72 in. (6 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Product Performance and Technical Specs
Total Airflow	212 CFM
Total Noise	27 dBA
Max Speed	3000 RPM
Static Pressure	324 Pa
Voltage	100-240V AC
Frequency	50/60 Hz
Max Power Draw	35 W
Average Power Usage	18 W
Current	0.55 A
Power Connector Type	US Plug (NEMA 5-15 Type B)
Operating Humidity	35 to 95% RH
Operating Temperature	32 to 140°F
Ingress Protection	IP 65
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
ETL Cert. (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
IC Certificate (Whole Product)	PDF
Product Manual
Product Manual	PDF
