AC Infinity CLOUDLINE S8 Inline Duct Fan System with Speed Controller, 8"

In stock
SKU: AI-CLS8
Regular price $159.00

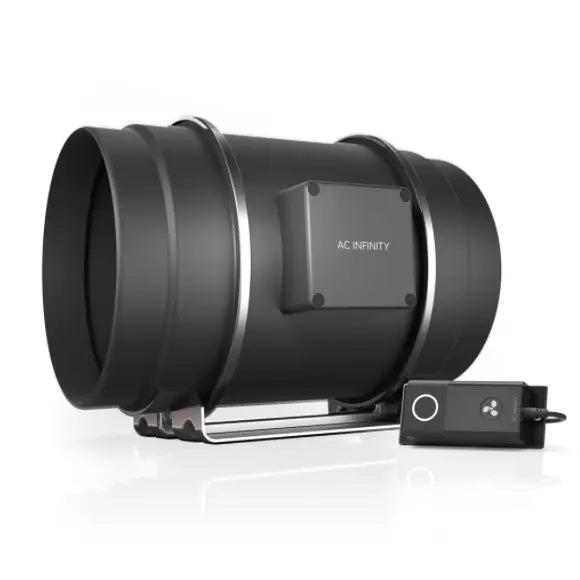

AC Infinity CLOUDLINE S8

QUIET INLINE DUCT FAN SYSTEM WITH SPEED CONTROLLER 8"

  • Designed to quietly ventilate grow tents, transfer heating/cooling to rooms, circulate fresh air, and cool AV closets.
  • Features an 8-speed manual controller utilizing PWM. See T-Series for temperature and humidity controls.
  • Mixed flow design combined with a PWM-controlled DC-motor for a truly quiet and energy efficient performance.

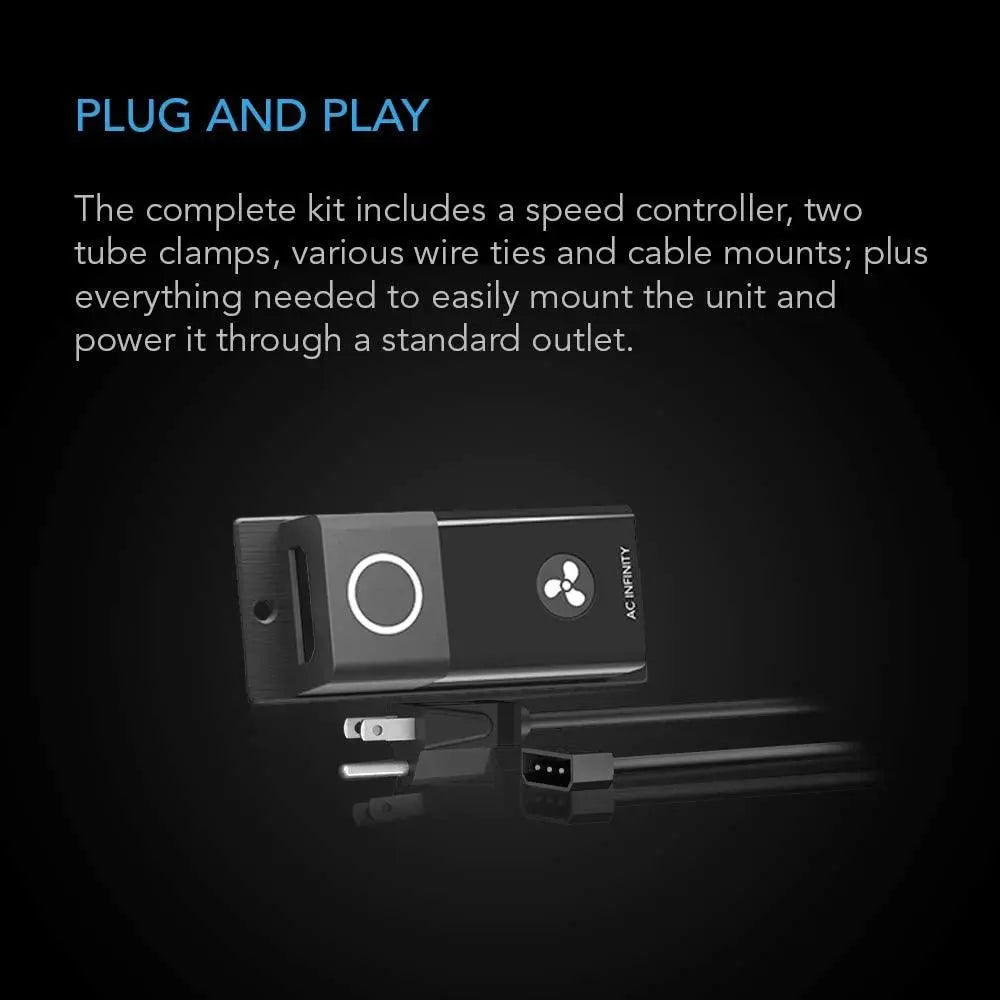

  • Kit also includes corded AC power adapter, installation manual, and all necessary mounting hardware.
  • Duct Size: 8” | Dimensions: 8.5 x 11.9 x 9.2 in. | Airflow: 807 CFM | Noise: 39 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

The duct fan system is designed to quietly cool AV equipment rooms and closets, and to ventilate various air circulation and exhaust projects. Features an inline speed controller utilizing PWM-technology. Containing an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains a DC-motor for a quiet and energy efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Complete kit includes one duct fan unit, one inline speed controller, installation manual, all necessary mounting hardware, and a corded AC plug adapter to power the unit through a standard outlet.

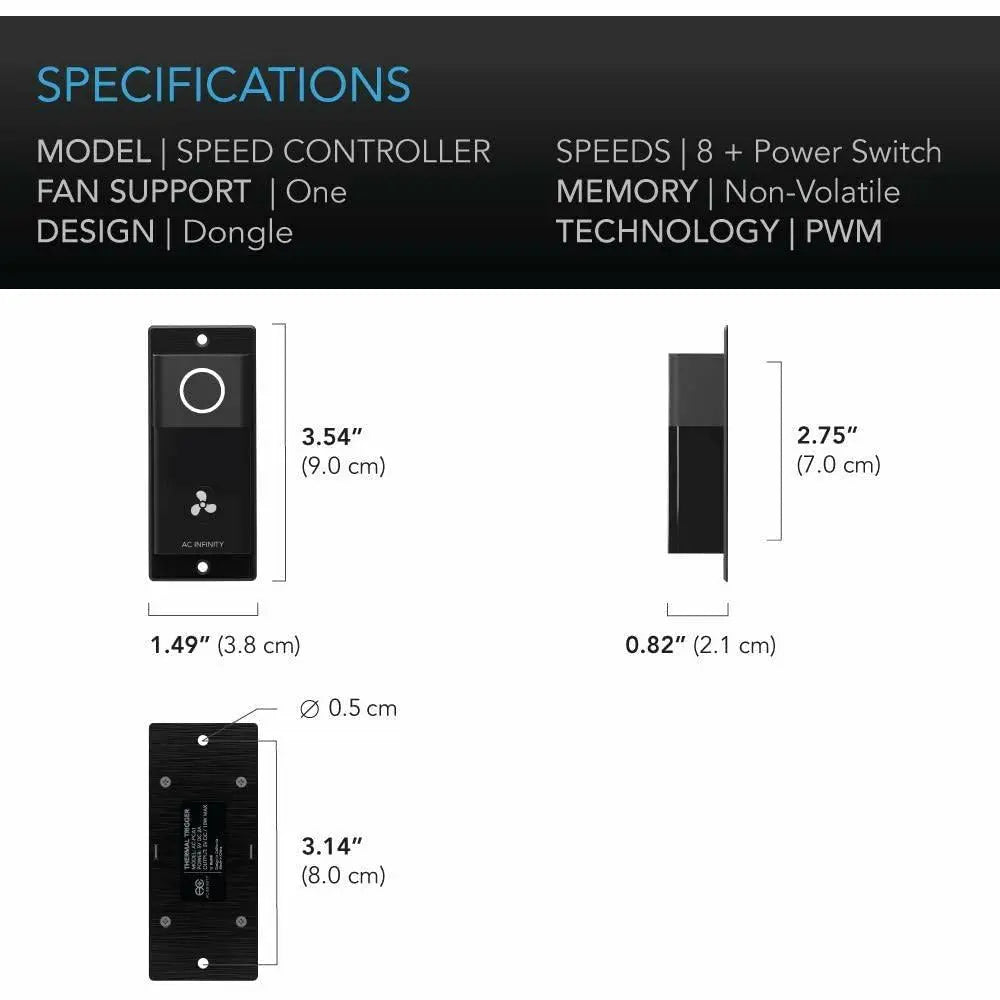

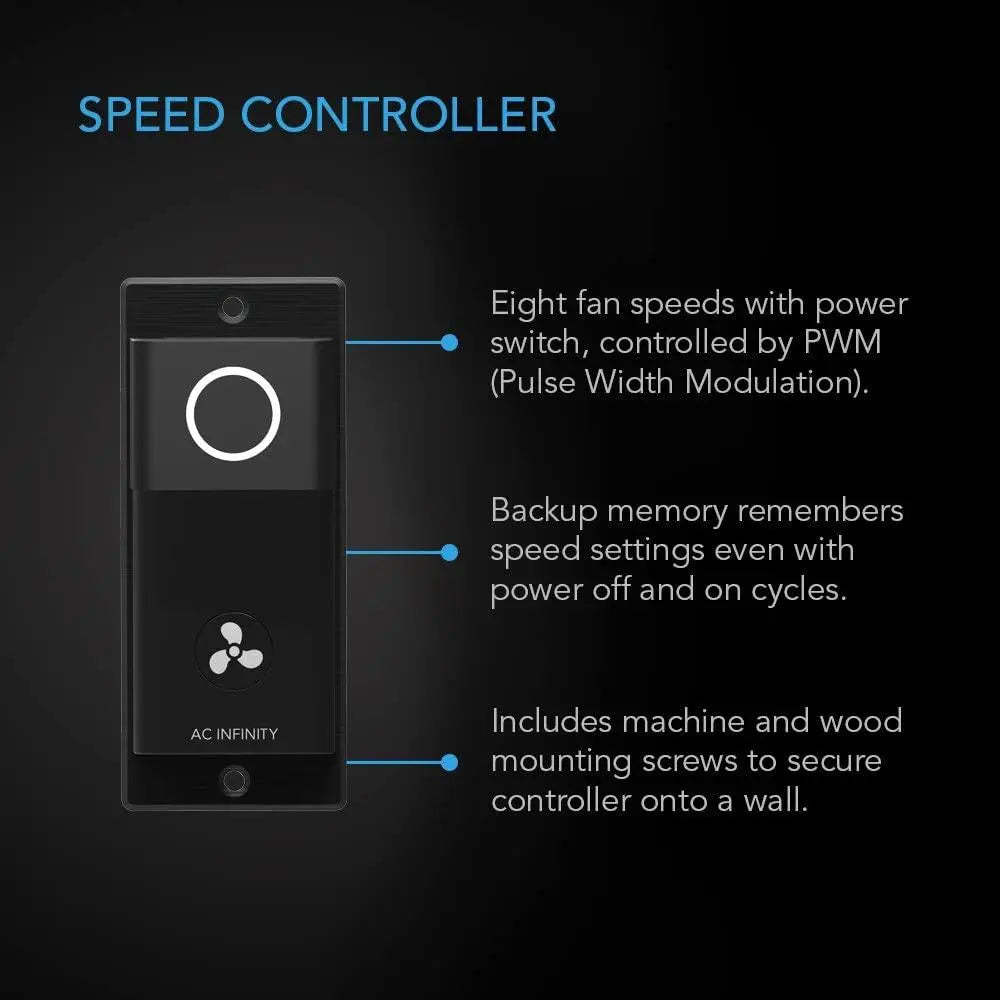

PRECISE SPEED CONTROLLER

The inline speed controller enables you to set the duct fan’s speed to optimal noise and airflow levels for various environments. Unlike common AC-powered duct fans that suppresses voltage to control fan speeds, this duct fan features a DC or EC-motor that is precisely controlled using PWM (Pulse Width Modulation). This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers. Eight speed options are available with power switch, and backup memory. This S8 model can be connected to the smart controller of the CLOUDLINE T8 model to share the same programming and power source.

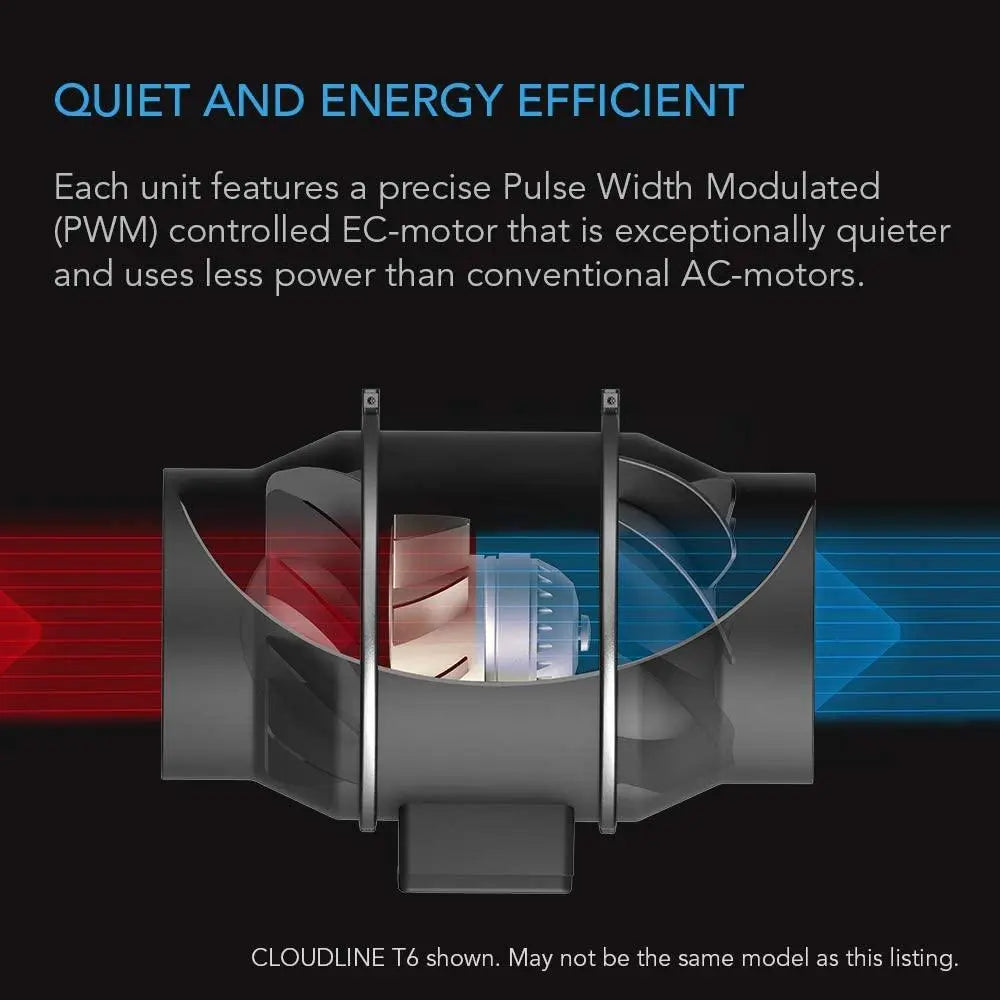

QUIET AND ENERGY EFFICIENT DESIGN

The inline fan features a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

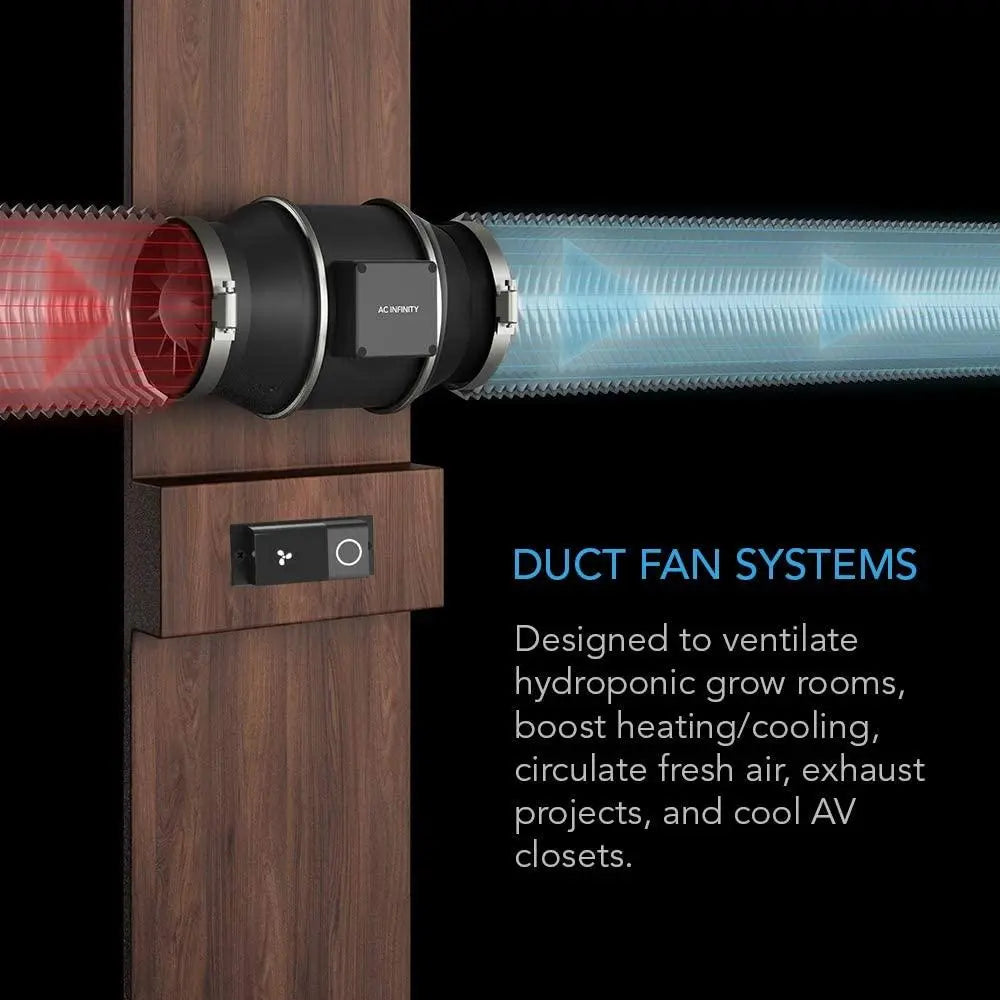

APPLICATIONS

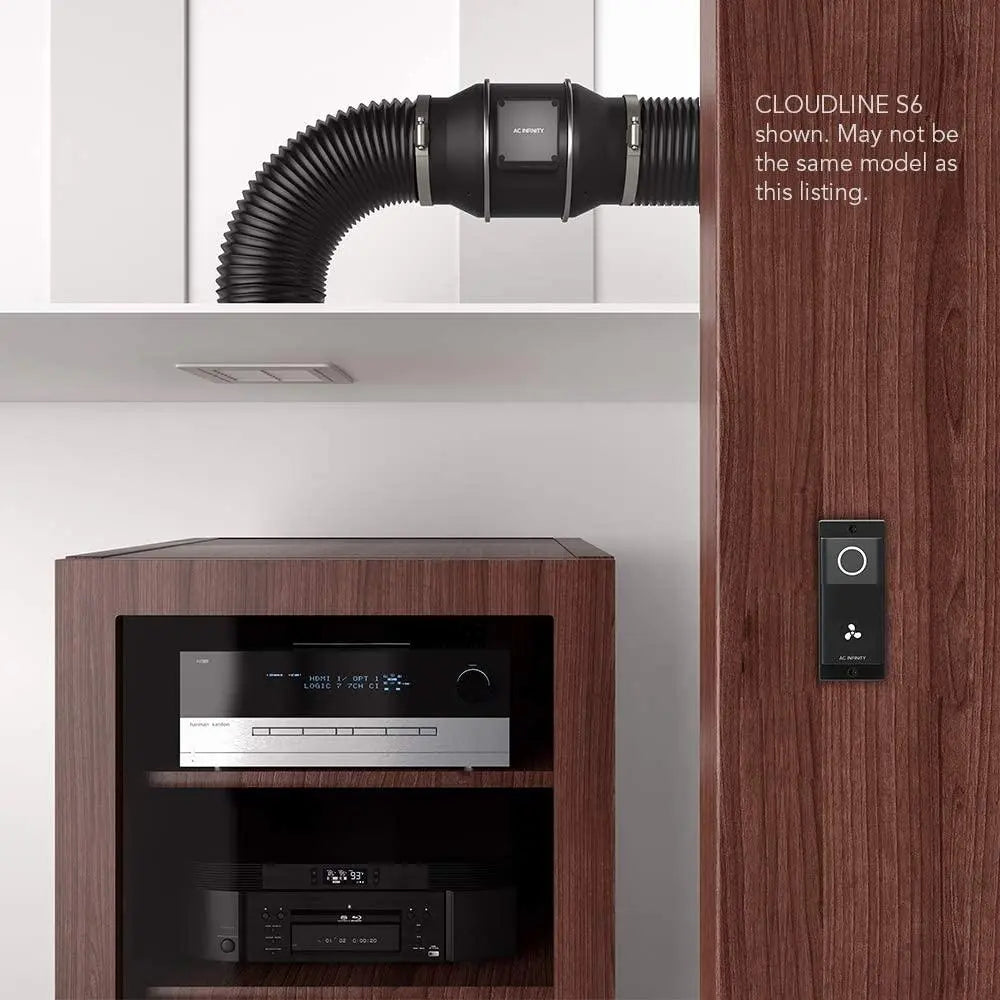

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

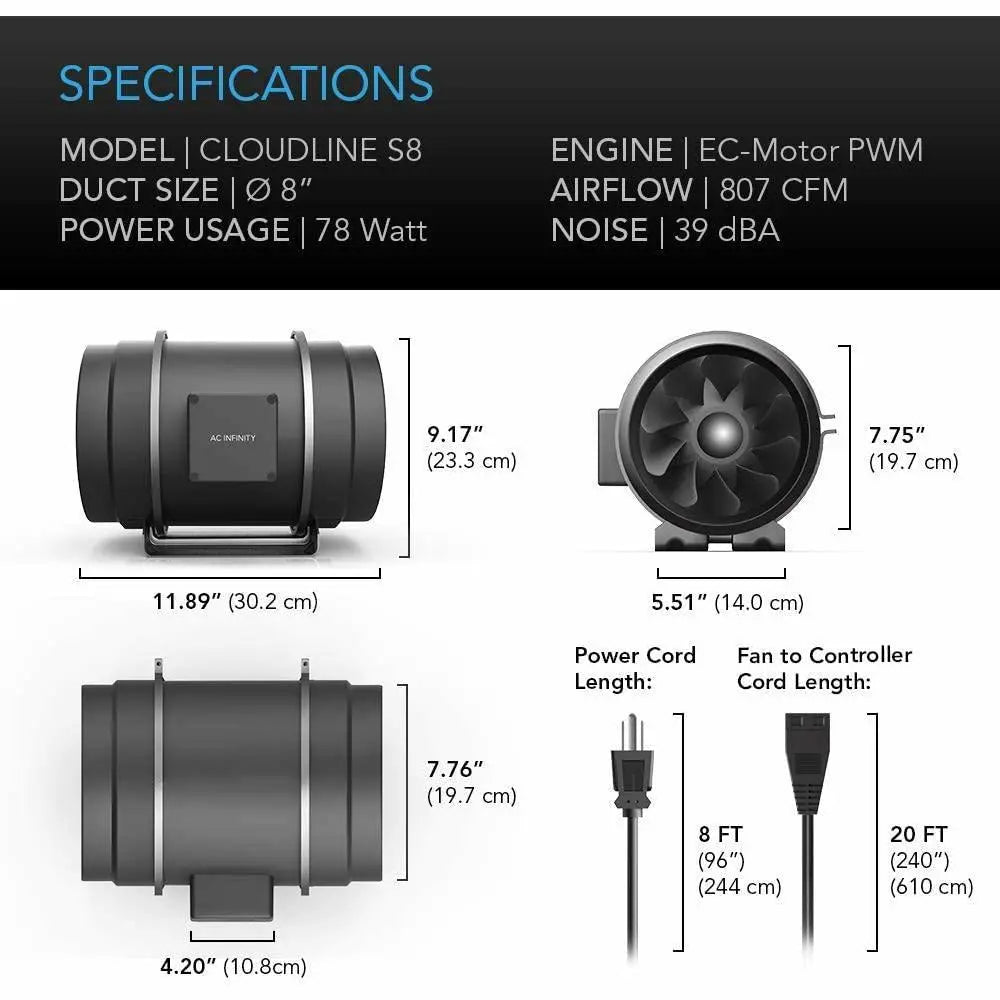

 Product Performance and Technical Specs
   Total Airflow    807 CFM
   Total Noise    39 dBA
   Static Pressure    746 Pa
   Operating Voltage    120V
   Power    78-110 W
   Current    2.27 A
   Wall Adapter Input    100 to 240V AC
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   L10 Life Expectency    67,000 Hours
   Fan Quality Approvals    CE, RoHS
