AC Infinity CLOUDRAY A6
Grow Tent Clip Fan
- Designed with an EC-motor to provide precise air circulation for all stages of a plant's growth.
- Digital 10 speeds, from gentle breezes for seedlings to a powerful airflow for flowering.
- IP-44 rated specifically for the grow environment to be resistant to high humidity and heat.
- Connects with smart controllers to access climate triggers, grow cycles, scheduling, and more.
- Impeller: 6.5" | Airflow: Up to 315 CFM | Non-Oscillating Manual Swivel | Fits All Grow Tent Pole Sizes
PRODUCT DESCRIPTION

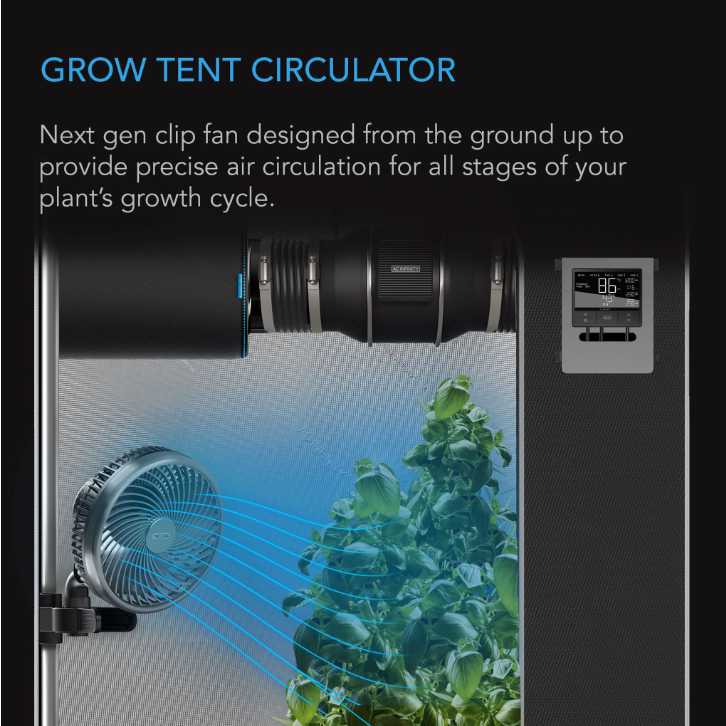

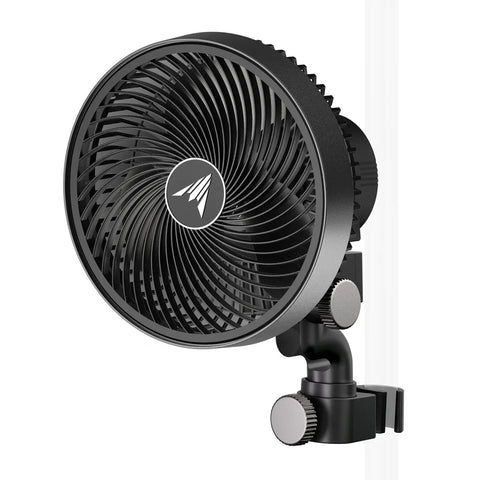

A next-gen clip fan designed from the ground up to provide precise air circulation for all stages of a plant’s growth. Utilizes a cutting-edge EC motor with PWM control to access a full range of fan speeds, from gentle breezes to a powerful airflow. The ten speed levels are shown with a circular LED display that dims after fan speed is set to leave your plant's light cycle undisturbed. Adjustable head tilt and swiveling arm provide flexible directional airflow options. Features a heavy-duty clamp that tightly grips onto grow tent poles of all sizes for a secure vertical hold. Each unit is IP-44 rated to be highly resistant against humidity and temperature. Can be powered through a standard outlet with its 8-foot power plug cord.
SMART CIRCULATION CONTROL

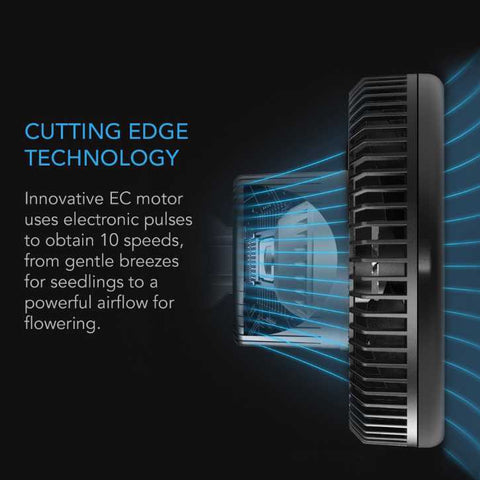

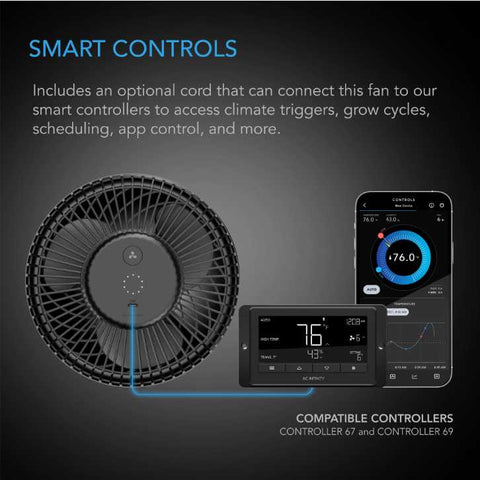

Features a cutting-edge Electronically Commutated (EC) motor, controlled digitally using precise electronic pulses. This PWM technology enables the fan to access the full range of its speed 0 to 100%. Set the optimal circulation for any plant growth stage, from ultra-gentle breezes for germination and seedlings, to a powerful airflow for vegetative and flowering. Includes a corded adapter that can be used to connect to AC Infinity smart controllers to access climate triggers, grow cycles, scheduling, and more. Controllers are sold separately.

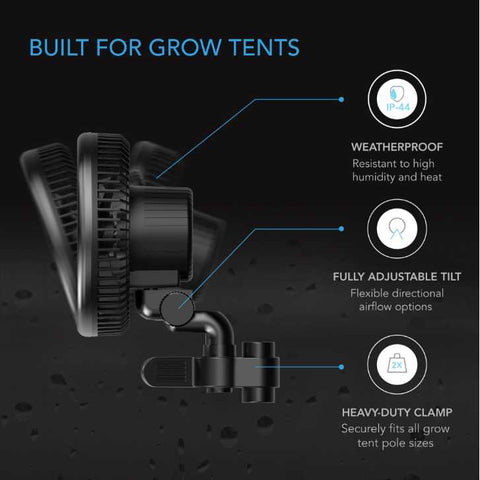

RATED FOR GROW ENVIRONMENTS
This series was designed from the ground up for a grow space environment. All components are specially sealed to IP-44 standards to be highly resistant to liquids and dust. As a result, the system can maintain peak performance and a long lifespan even in harsher surroundings with high humidity and temperatures.
Product and Mounting Dimensions - Fan Unit
|
Impeller Size |
6.5" |
Total Dimensions |
8.74 x 10.47 in. (22.2 x 26.6 cm) |
Cord Length to Plug |
96 in. (8 feet) |
Product Performance and Technical Specs
|
Maximum Airflow |
315 CFM |
Total Noise |
33 dBA |
Static Pressure |
25 Pa |
Operating Voltage |
100-240V AC |
Power |
8 W |
Current |
0.14 A |
Operating Humidity |
35 to 85% RH |
Operating Temperature |
32 to 140°F |
Waterproof Rating |
IP-44 |
Rotation Range |
90° |
Tilt Angle |
55° |
Oscillation |
Manual Adjustable Tilt |
Fan Bearings |
Dual Ball Bearing |
Mounting Positions |
Horizontal or Vertical |
Life Expectancy |
67,000 Hours |
|
Product Manual
|
PDF |
