AC INFINITY

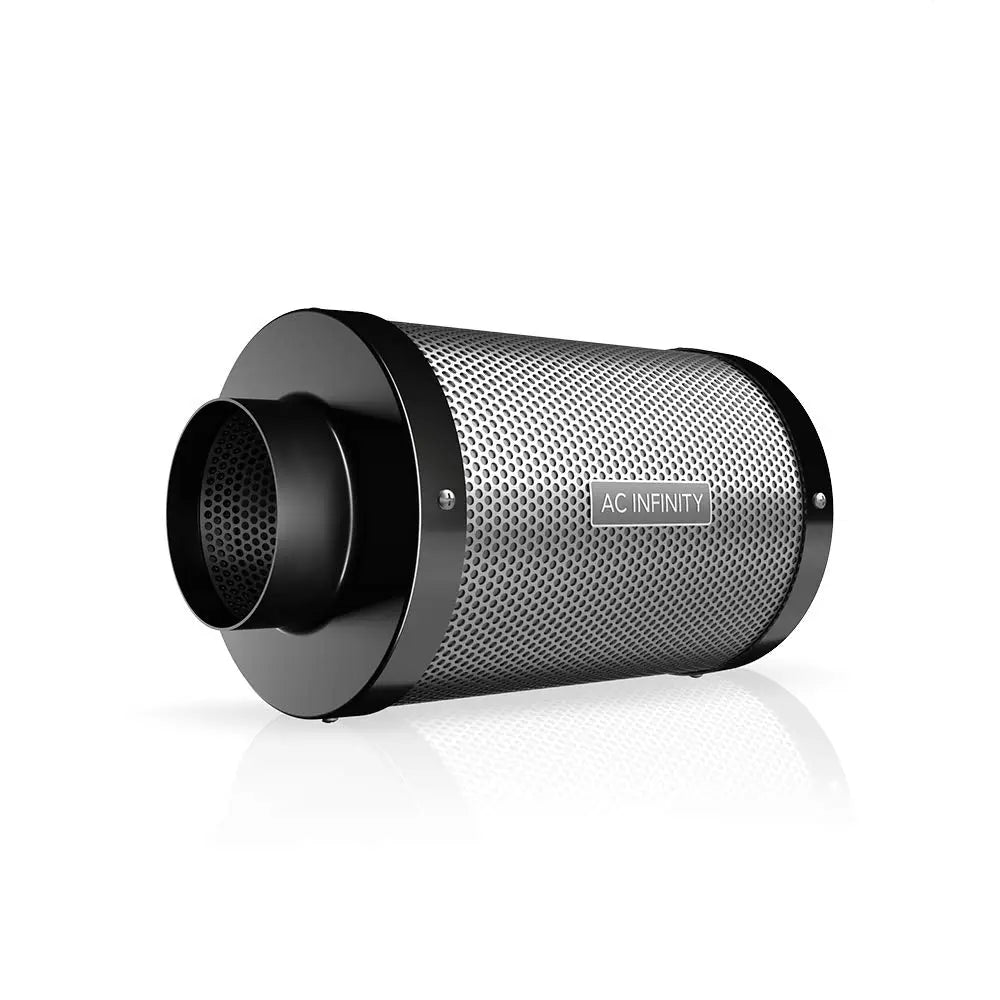

Carbon Air Duct Filter 4"
- Designed to eliminate odors and chemicals for grow tents and hydroponics room.
- Features premium-grade Australian charcoal with higher absorption and longer life rating.
- Contains heavy-duty stainless steel flanges, aluminium meshing, and clothed pre-filter.
- Enables maximum airflow passthrough for both intake and exhaust configurations.
- Duct Opening: 4” | Length: 13" | Carbon: Australian RC412 at 1200+ IAV | Thickness: 60mm
PRODUCT DESCRIPTION

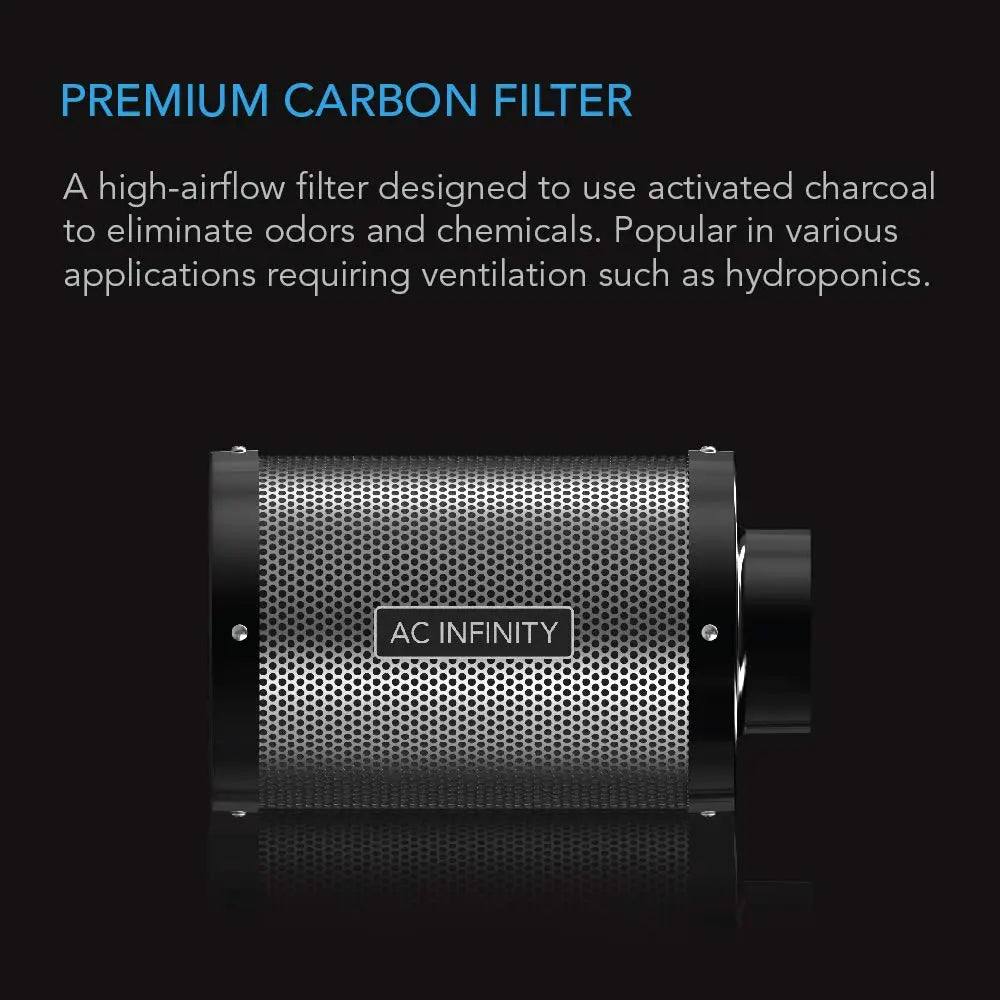

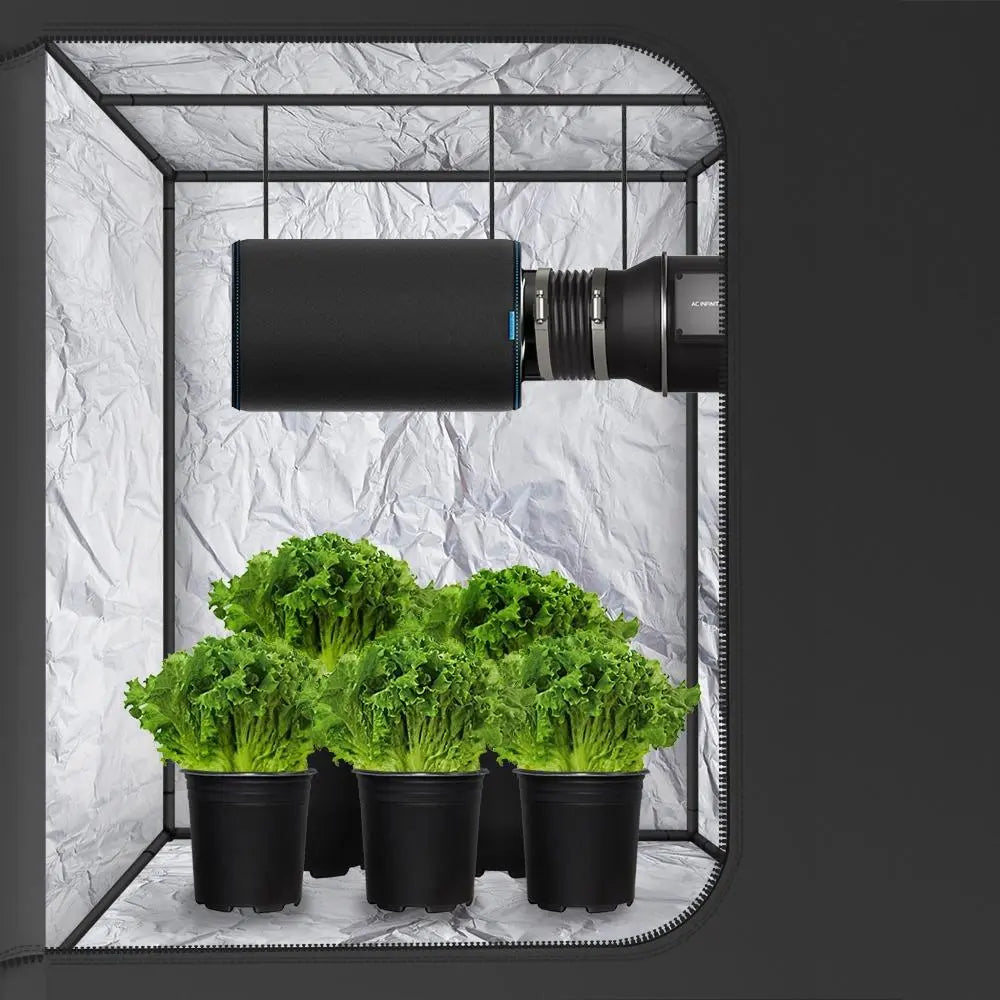

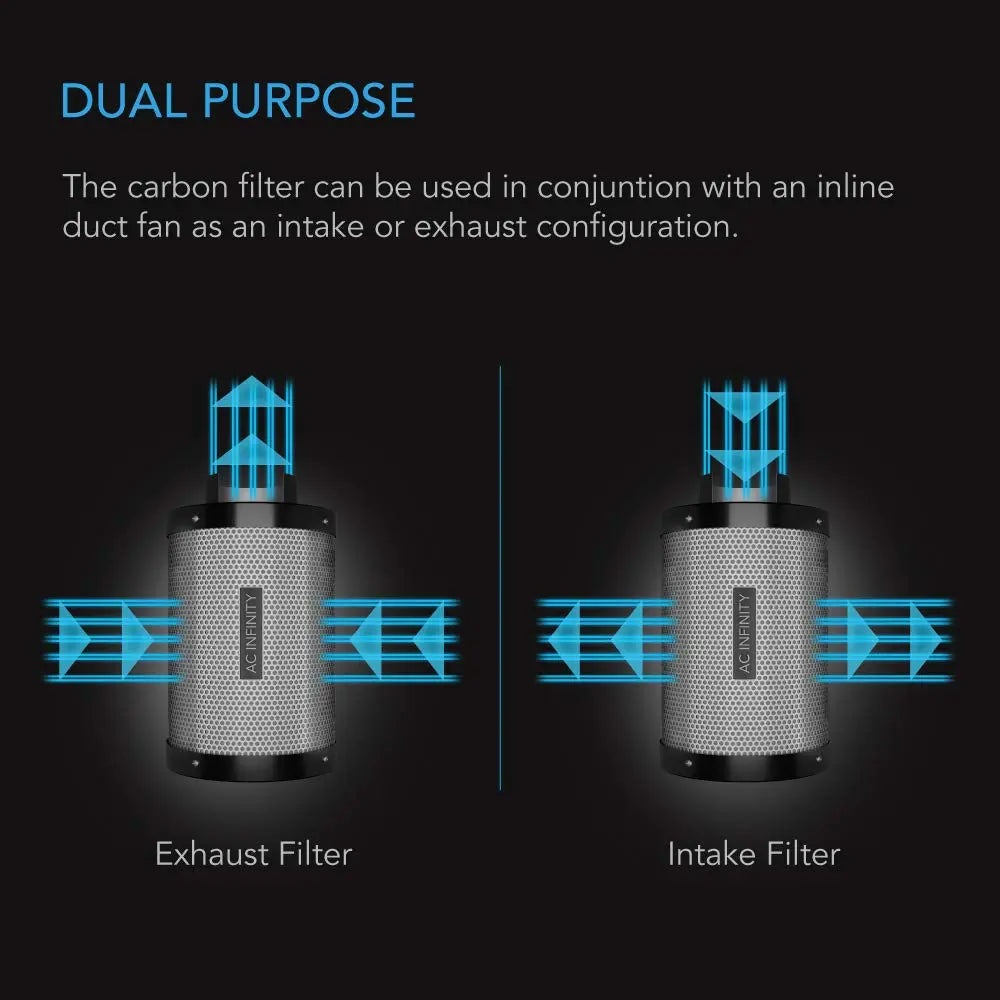

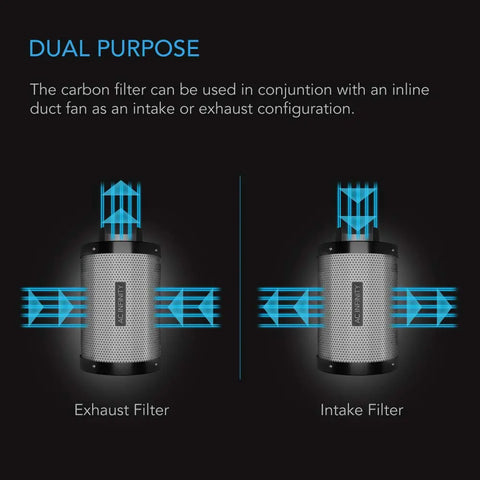

The high-airflow duct filter is designed to use activated carbon to eliminate odors and chemicals, popularly used for Hydroponics, grow rooms, kitchens, smoking areas, and other ventilation projects. Features premium-grade Australian Virgin charcoal bed. The filter can be used in conjunction with a inline duct fan to act as both intake and exhaust configuration.

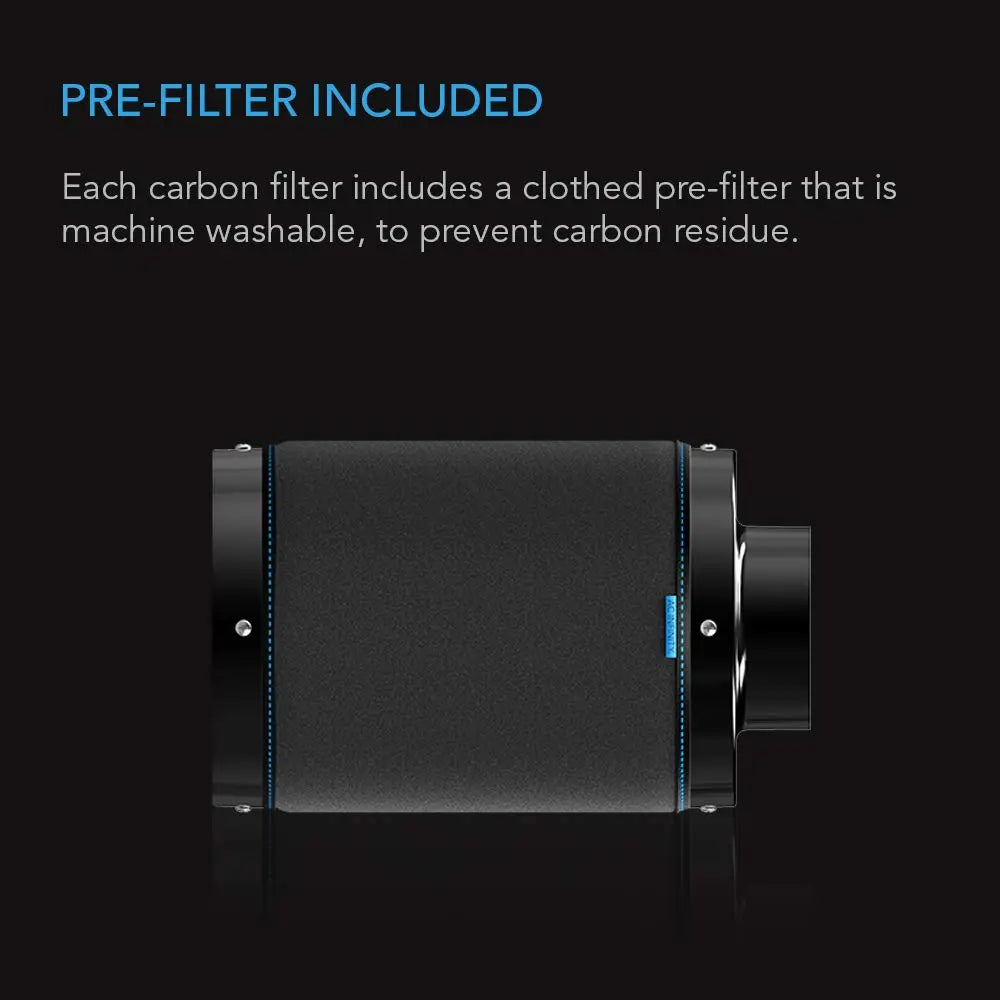

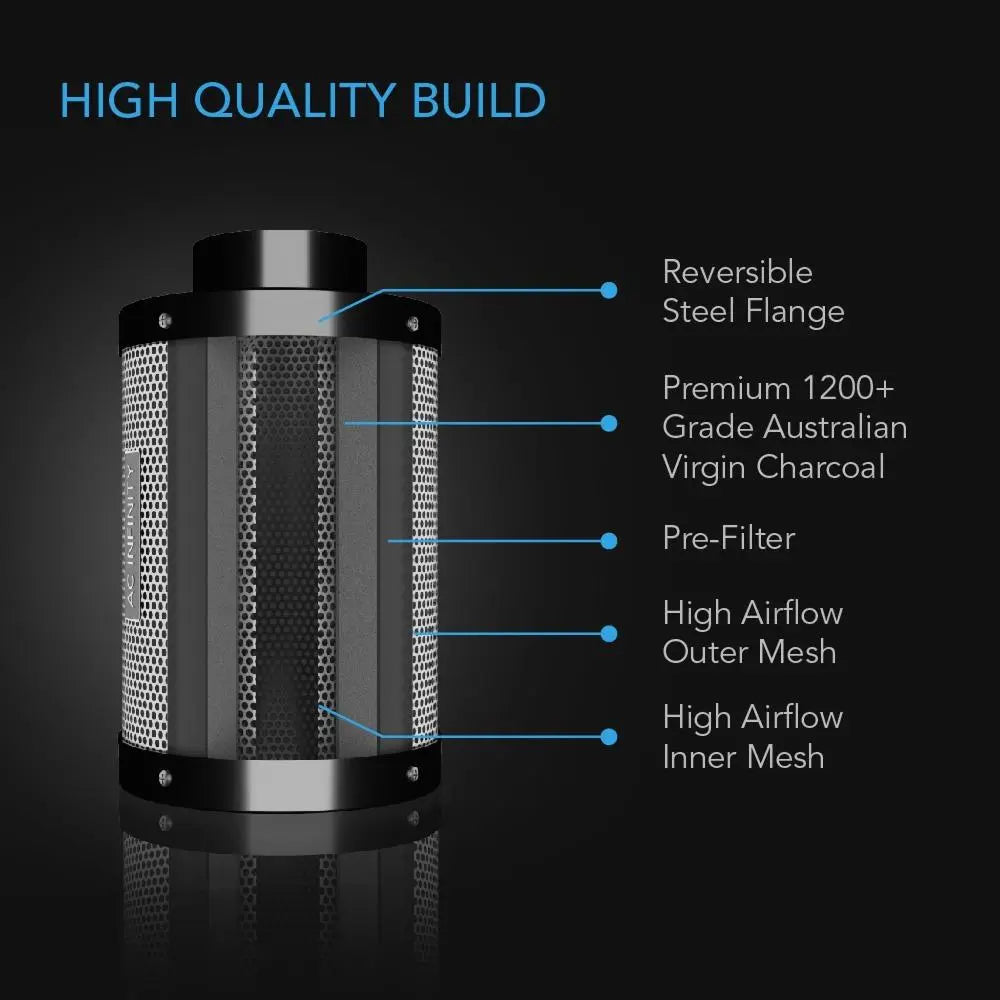

Heavy-duty construction contains stainless steel flanges and dual-sided aluminium mesh. The flanges can also be reversed to prolong the life of the filter. Includes a machine washable pre-filter cloth to prevent carbon residue.
PREMIUM GRADE CARBON
Each carbon filter features premium-grade Australian Virgin charcoal bed rated at 1200+ IAV. Due to a higher microporosity and surface area rating, we were able to thicken the charcoal bed to 60mm and increase the mesh open area to 55%. This combination not only enables a higher absorption rate without restricting free airflow, it allows the carbon filter to last up to 33% longer.

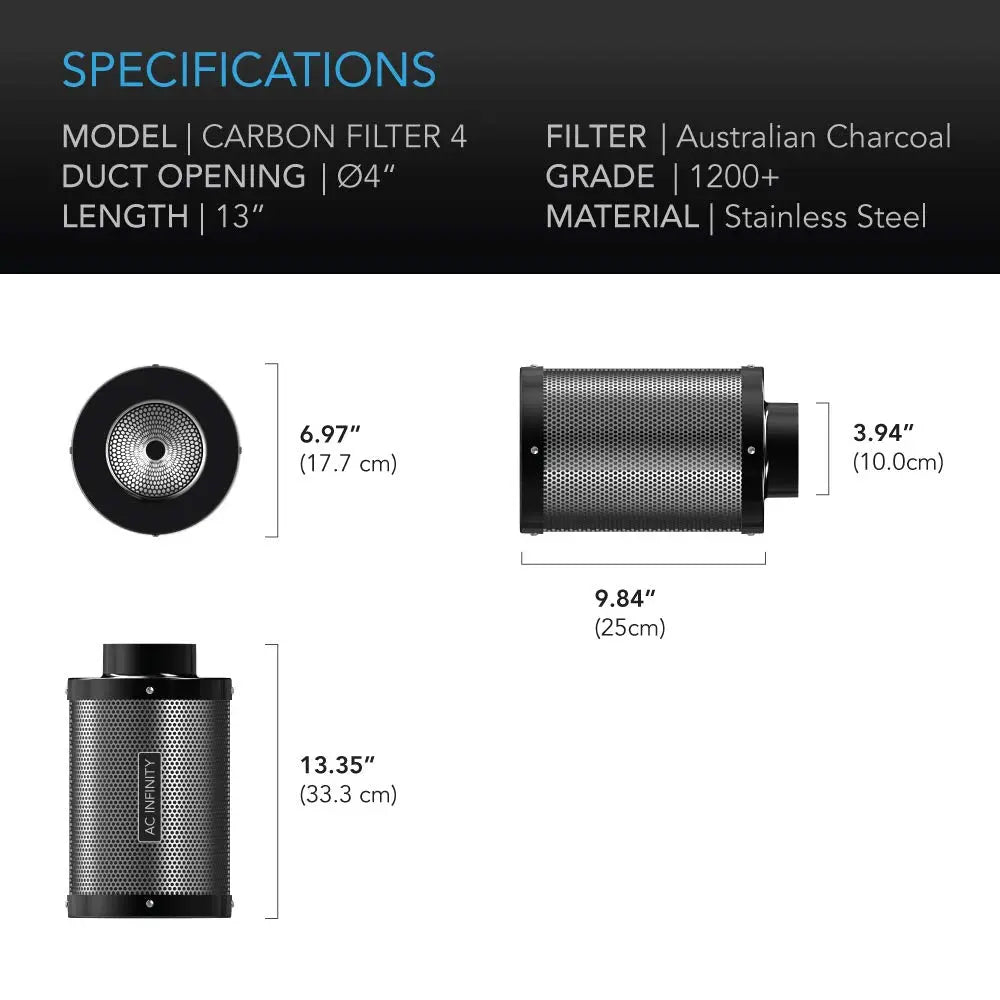

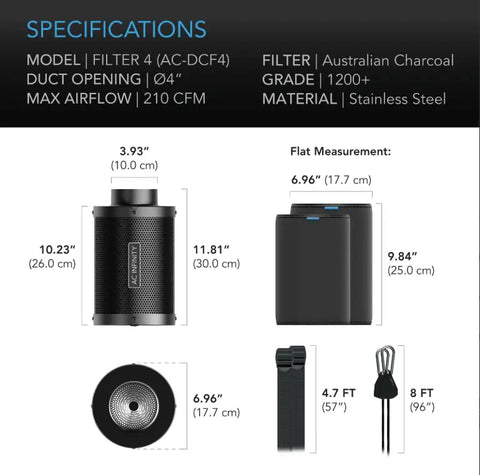

Product and Mounting Dimensions
|
Duct Opening Size |
4" |
Total Dimensions |
13.35 x 6.97 in. (33.3 x 17.7 cm) |
Flange Length |
1.46 in. (3.7 cm) |
Product Performance and Technical Specs
|
Flange Material |
Aluminum |
Flange Design |
Reversible |
Mesh Material |
Galvanized Steel |
Carbon Type |
Australian Virgin RC412 |
Carbon Grade |
1200+ IAV |
Carbon Thickness |
38mm |
Maximum Airflow |
210 CFM |
