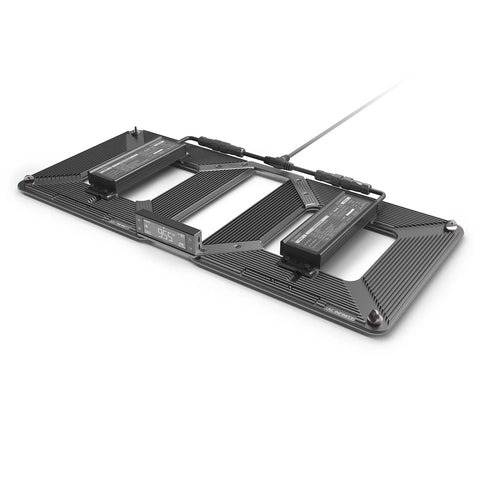

AC Infinity IONGRID T24 LED Grow Light
- Innovative halo design produces uniform coverage and deeper light penetration to maximize plant yields.

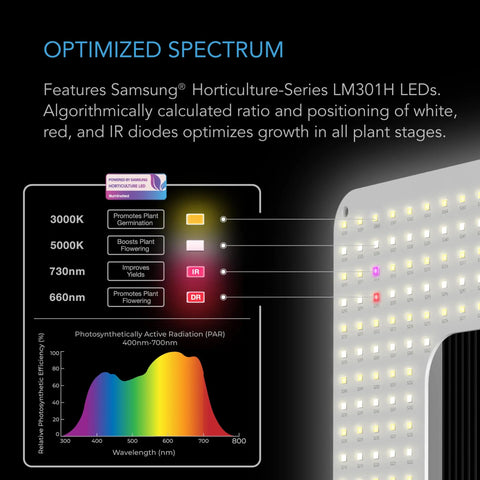

- Specially formulated with full-spectrum Samsung LM301H white, red, and IR LEDs optimized for all grow stages.
- Linear bar light design adapted into four-sided halo form factor to achieve commercial lighting output.
- Digital controller with daisy-chaining ports featuring PWM dimming, timers, cycles, and backup memory.

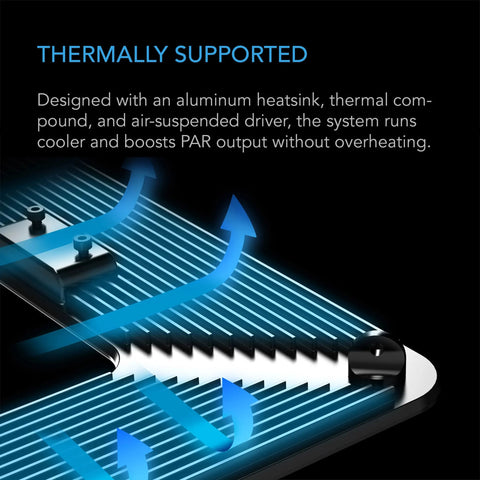

- Air-suspended driver over aluminum heatsink passively cools LEDs to last longer and boost PAR output.
PRODUCT DESCRIPTION

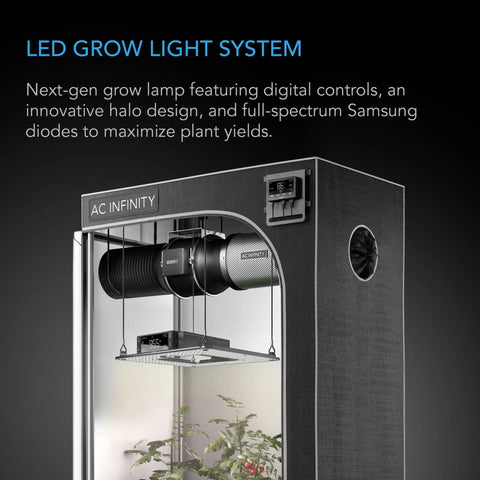

An indoor LED grow lamp with an innovative halo design crafted to maximize plant yields by providing uniform coverage and deeper light penetration. This LED grow system uses the latest Samsung LM301H diodes to efficiently produce full-spectrum lighting fit for use during the germination, vegetative, and flowering stages. The grow tent light is built with a raised LED driver, set on top of an aluminum frame with a thermal compound for no-noise heat dissipation. It is primarily set in grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. Each unit is plug-and-play, and includes a set of rope hanging hardware to be ready for use out of the box.

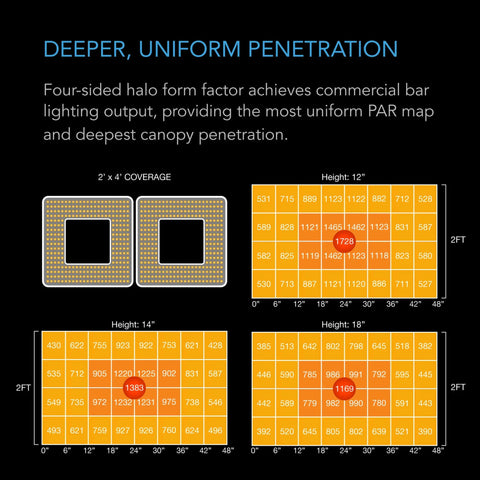

SPECIALIZED FORM FACTOR
These light-emitting diodes are arranged in a halo ring form factor, which allows for even coverage and deeper penetration. This lighting maximizes your grow tent’s capacity and growth potential by expanding the amount of usable growing space and reaching past your plant’s canopy. The diodes’ arrangement also enables the LED grow light to achieve commercial bar light performance and provide full coverage in 2x4 spaces.

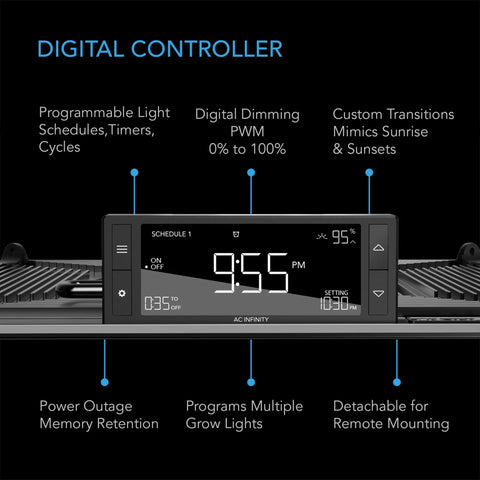

DIGITAL CONTROLLER
Each system includes a programmable controller that is capable of efficient 0-100% PWM dimming. Set consistent light schedules, light cycles, and timers. Customize transitions that can mimic the gradual dimming of sunrise and sunset. Features baseline brightness levels and backup memory in case of a temporary power loss. Controllers can be detached to be mounted remotely and are built with extension ports to provide programming to additional LED grow lights.
| Product Identification |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
IONGRID T24 |
| Product Model |
AC-IGT24 |
| UPC Code |
819137022164 |

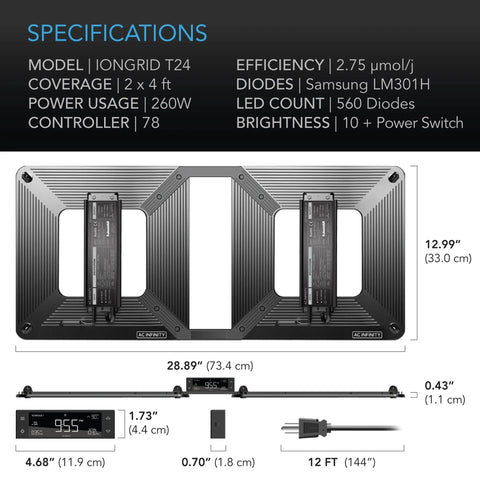

| Product and Mounting Dimensions |
| Light Dimensions |
28.89 x 12.99 in. (73.4 x 33.0 cm) |
| Heatsink Height |
0.43 in. (1.1 cm) |
| Controller Dimensions |
3.30 x 1.18 x 0.70 in. (8.4 x 3.0 x 1.8 cm) |
| Product Performance and Technical Specs |
| Coverage |
2 x 4 ft. |
| Diodes |
Samsung LM301H |
| LED Chip Count |
560 |
| LED Driver |
Moso (x2) |
| Efficiency |
2.75 µmol/j |
| PPFD |
1728 PPFD |
| Spectrum |
660nm, 730nm, 3000K, 5000K |
| Wattage |
260 W |
| Voltage |
100-277V AC |
| Frequency |
50/60 Hz |
| Current |
4.4 A |
| Controller |
Digital Transition Controller |
| Power Connector Type |
US Plug (NEMA 1-15 Type-A) |
| Operating Humidity |
35 to 85% RH |
| Operating Temperature |
32 to 104°F |
| Life Expectancy |
50,000 Hours |
| Product Manual |
Product Manual
|
 PDF |
