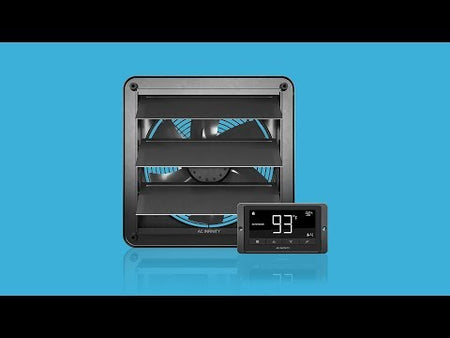

AC Infinity AIRLIFT T12 12-Inch Shutter Exhaust Fan with Temperature and Humidity Controller | AC-ALT12

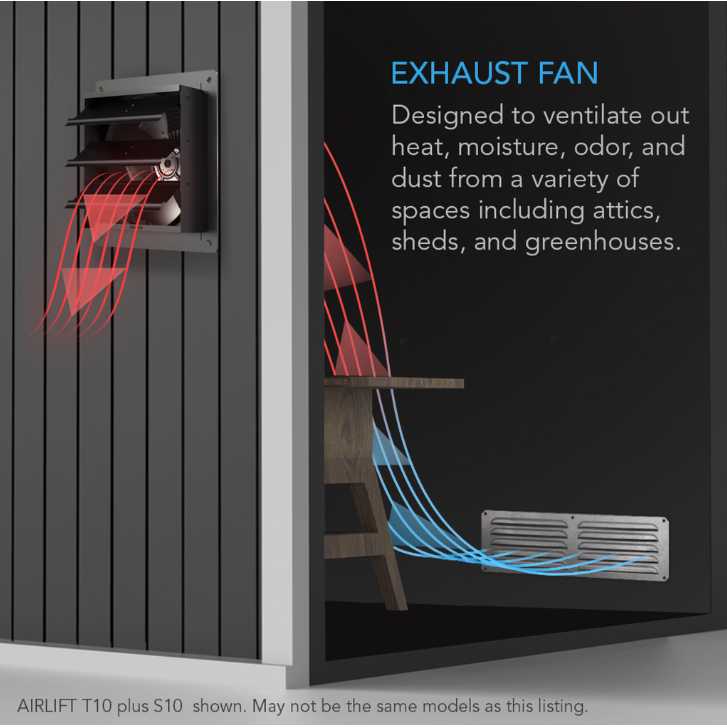

Automatically remove heat, excess humidity, odors, and airborne dust with the original AC Infinity AIRLIFT T12 Shutter Exhaust Fan. Designed for greenhouses, grow rooms, garages, workshops, attics, sheds, and other enclosed spaces, this powerful wall-mounted ventilation system delivers up to 830 CFM of airflow.

The included programmable controller monitors temperature and humidity through a corded sensor probe and adjusts fan operation in response to changing environmental conditions. Custom fan speeds, high and low environmental triggers, timers, alarms, and backup memory provide convenient climate management without requiring a separate ventilation controller.

Important Product Configuration Notice

This listing is for the original AIRLIFT T12 configuration supplied with AC Infinity’s original temperature and humidity controller.

It does not include the newer CONTROLLER 69 PRO currently shown with revised versions of this product. The original controller does not provide WiFi connectivity or remote control through the AC Infinity app.

Customers will receive the original controller, fan, cables, and components pictured and described on this listing.

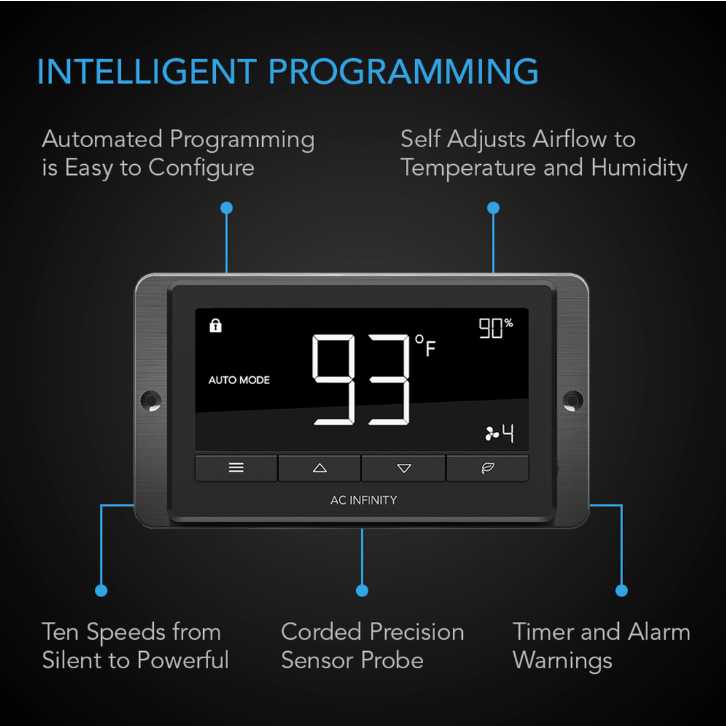

Automated Temperature and Humidity Control

The included controller actively monitors environmental conditions using its 12-foot corded temperature and humidity sensor.

Fan speeds can be programmed to respond automatically when high or low temperature and humidity thresholds are reached. The fan can also operate continuously at a selected speed or run according to a custom timer.

Controller functions include:

• High-temperature triggers

• Low-temperature triggers

• High-humidity triggers

• Low-humidity triggers

• Custom fan-speed settings

• Continuous operation

• Timer programming

• Environmental alarm warnings

• Fan-failure alerts

• Eco mode

• Backup memory

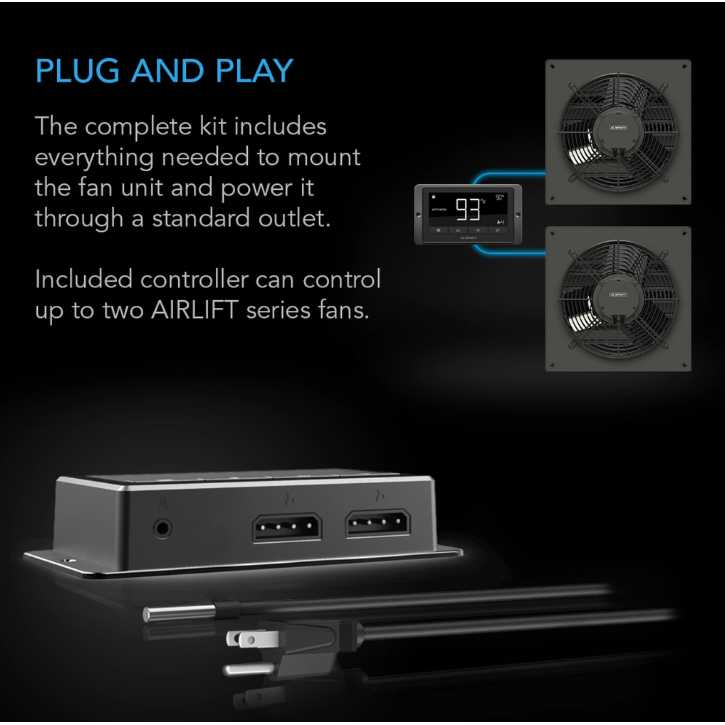

The controller can operate up to two compatible AIRLIFT Series fans together under the same programming.

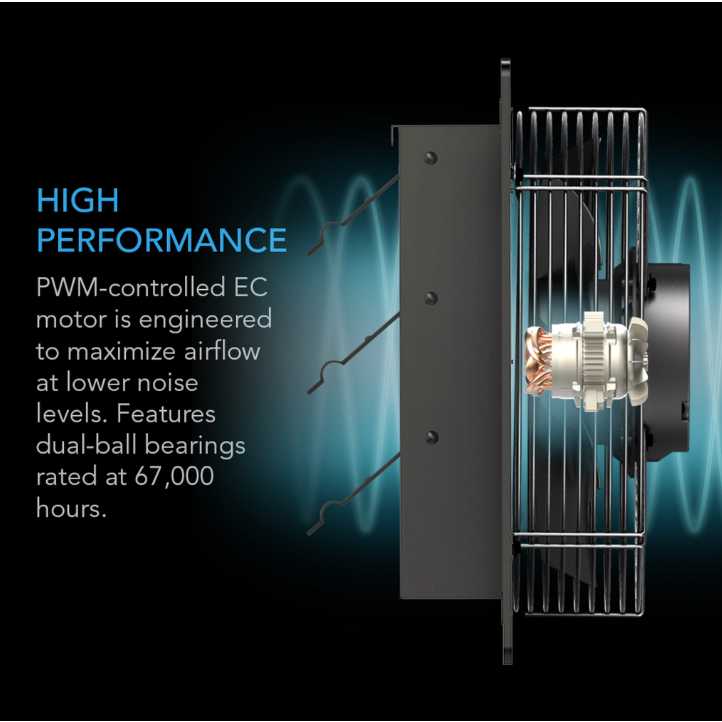

High-Airflow EC Motor

The AIRLIFT T12 uses an energy-efficient EC motor with PWM control to deliver up to 830 CFM of airflow. Electronic motor control supports precise fan-speed adjustment while reducing unnecessary energy consumption.

The permanently lubricated motor contains dual ball bearings rated for an estimated 67,000 hours of operation. Its enclosed construction and IP44 rating help protect the fan against dust and splashing water in demanding growing and utility environments.

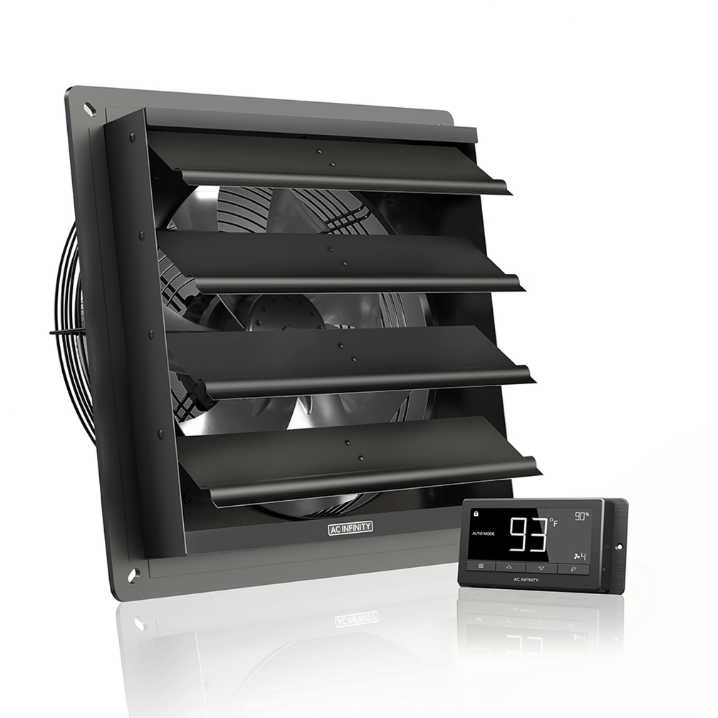

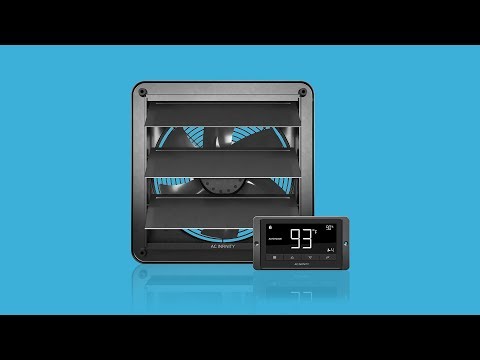

Heavy-Duty Shutter Construction

Weather- and corrosion-resistant steel shutters automatically open when the fan operates and close when it stops. Closing the shutters helps reduce drafts and limits outside air or debris from entering through the ventilation opening while the fan is inactive.

Lightweight aluminum blades are carefully balanced to reduce vibration, while steel wire guards help protect the fan blades without significantly restricting airflow.

Flexible Controller Placement

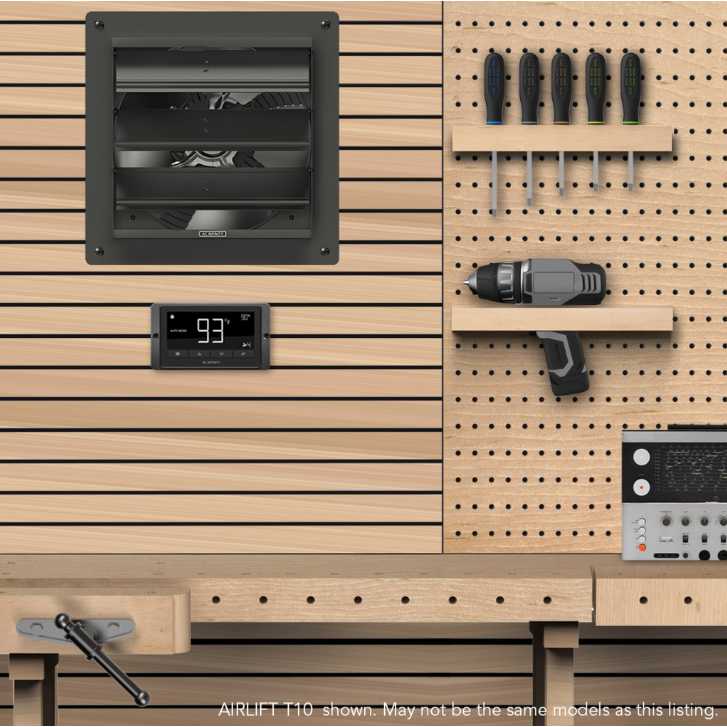

A 20-foot cable connects the fan to its controller, providing flexibility when mounting the fan high on a greenhouse, grow-room, garage, or workshop wall.

The included sensor probe has a 12-foot cable, allowing it to be positioned away from the fan or controller so it can measure conditions within the area that requires the most accurate environmental monitoring.

Package Includes

• AC Infinity AIRLIFT T12 shutter exhaust fan

• Original temperature and humidity controller

• Corded temperature and humidity sensor probe

• 20-foot fan-to-controller cable

• Controller power adapter and cable

• Mounting hardware

• Installation and operating instructions

Fan Specifications

• Brand: AC Infinity

• Product series: AIRLIFT

• Product model: AC-ALT12

• Fan size: 12 inches

• Maximum airflow: 830 CFM

• Noise level: 62 dBA

• Static pressure: 73 Pa

• Motor type: EC motor with PWM control

• Blade material: Aluminum

• Shutter material: Steel

• Fan bearings: Dual ball bearings

• Expected bearing life: 67,000 hours

• Mounting positions: Horizontal or vertical

• Operating voltage: 100–240V AC

• Power consumption: 54 watts

• Rated current: 0.75 amp

• Operating temperature: 32–140°F

• Operating humidity: 35–85% RH

• Ingress protection rating: IP44

• Fan-to-controller cable length: 20 feet

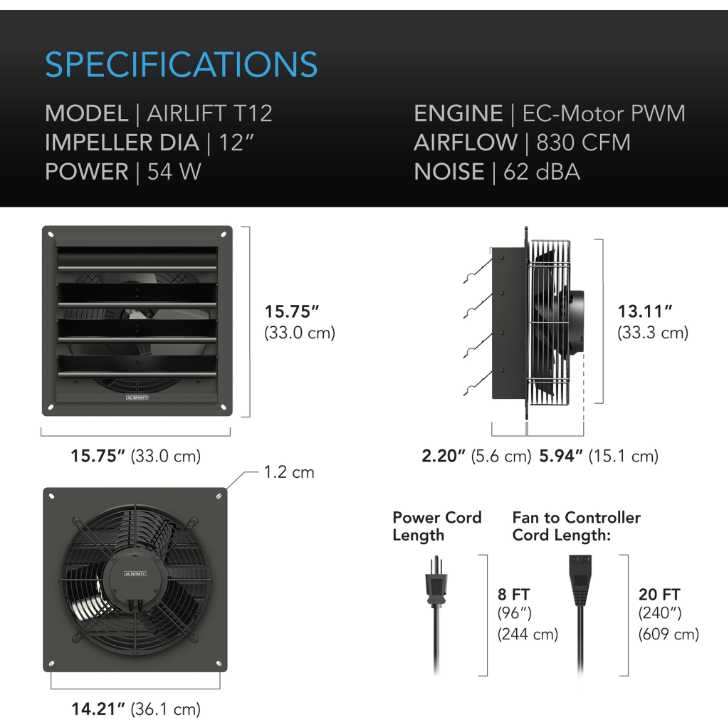

Fan and Mounting Dimensions

• Overall dimensions: 15.75 × 15.75 × 8.15 inches

• Front enclosure dimensions: 13.38 × 13.38 × 2.20 inches

• Required mounting opening: 13.54 × 13.54 inches

• Mounting-hole spacing: 14.21 × 14.21 inches

• Screw-hole diameter: 0.27 inch

Measure the installation area carefully before cutting the mounting opening.

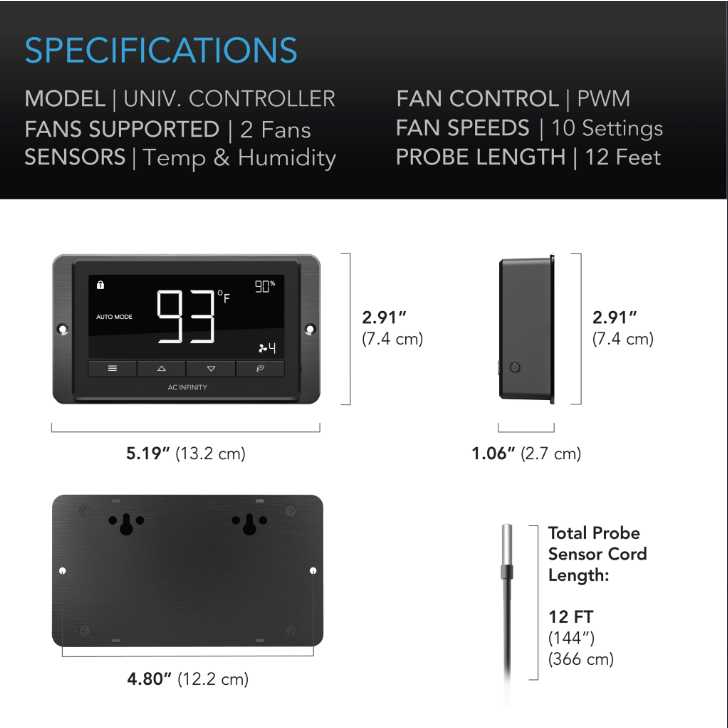

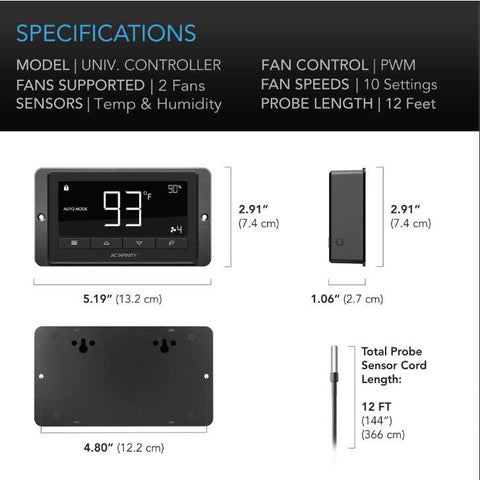

Controller Specifications

• Controller type: Original AIRLIFT temperature and humidity controller

• Environmental measurements: Temperature and humidity

• Maximum compatible fans controlled: 2

• Controller dimensions: 5.19 × 2.91 × 1.06 inches

• Mounting-hole spacing: 4.71 × 2.64 inches

• Controller screw-hole diameter: 0.119 inch

• Display dimensions: 3.50 × 1.40 inches

• Controller power-cord length: 8 feet

• Sensor-probe length: 12 feet

• WiFi connectivity: No

• Mobile-app control: No

Ideal For

• Greenhouse ventilation

• Indoor grow rooms

• Propagation rooms

• Garages and workshops

• Attic ventilation

• Garden sheds

• Equipment rooms

• Temperature management

• Humidity management

• Continuous air exchange

• Removing heat, moisture, odors, and airborne dust

• Growers who want automatic climate response without WiFi connectivity

Product Information

• Manufacturer: AC Infinity Inc.

• Product name: AIRLIFT T12

• Product model: AC-ALT12

• UPC: 819137020917

• Fan size: 12 inches

• Maximum airflow: 830 CFM

• Controller: Original temperature and humidity controller

• WiFi app control: No

• Temperature and humidity sensor: Included
