AC Infinity CLOUDLINE T6 Inline Duct Fan System w/ Temp and Humidity Bluetooth Controller, 6"

AC Infinity CLOUDLINE T6 Inline Duct Fan System w/ Temp and Humidity Bluetooth Controller, 6"

Ask a Question
List Price: $18000
Now: $15900

Ships within 24 hours | In Stock

CLOUDLINE Inline Duct Fan System w/ Temp and Humidity Bluetooth Controller

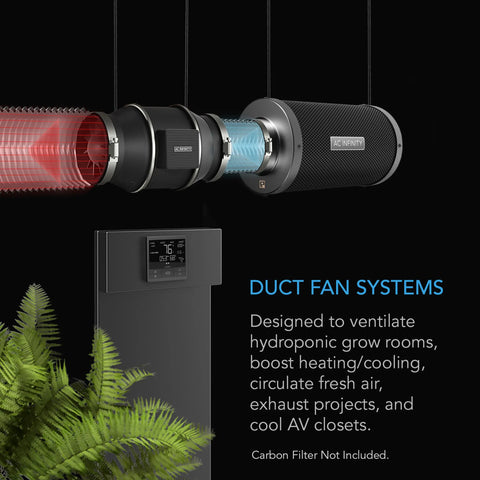

  • Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.
  • Intelligent controller with temperature and humidity programming, fan speed control, timer, and alarm system.
  • Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.
  • Kit also includes corded sensor probe, AC power plug, two duct clamps, and required mounting hardware.
  • Duct Size: 6” | Dimensions: 7.9 x 12.6 x 8.4 in. | Airflow: 402 CFM | Noise: 32 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains an EC-motor with PWM-control for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming and can connect to one additional fan. Complete kit includes one duct fan unit, one thermal controller, one corded thermal probe, two duct clamps, installation manual, and all necessary mounting hardware.

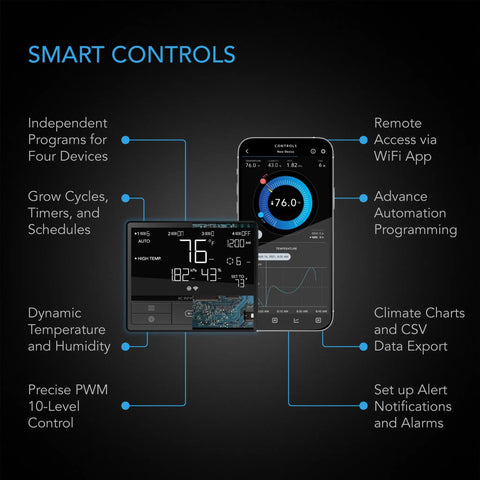

SMART CONTROLLER

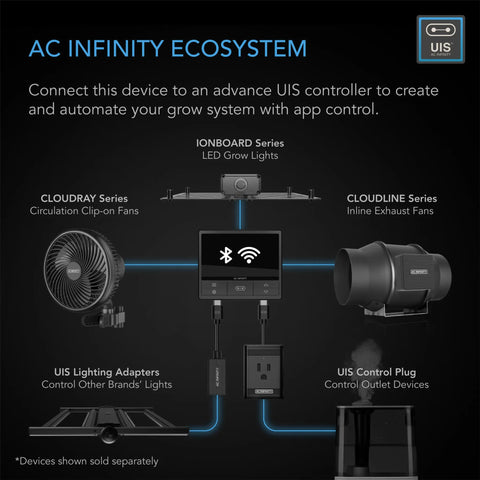

Features smart programming that not only has basic temperature and humidity triggers, but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for a variety of uses. Securely connect with the AC Infinity App via Bluetooth to access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to two AC Infinity fans with EC Motors including other CLOUDLINE fan sizes, and CLOUDRAY clip-on circulation fans.

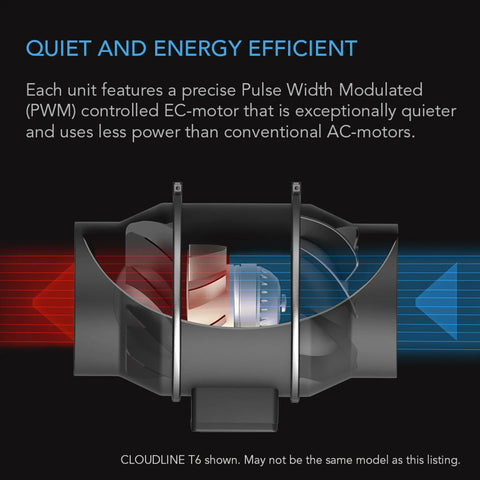

QUIET AND ENERGY EFFICIENT DESIGN

Unlike common duct fans that uses an AC-motor which are loud and unmanageable, this duct fan features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

APPLICATIONS

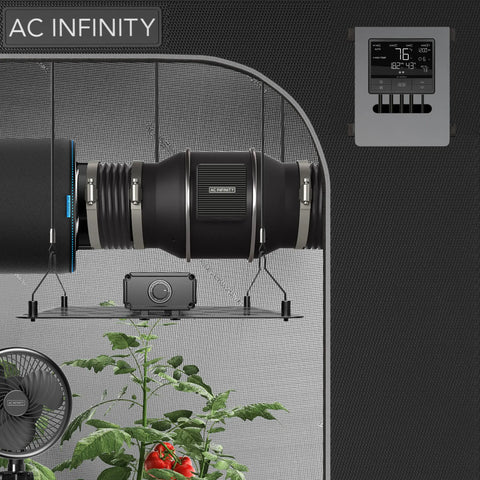

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

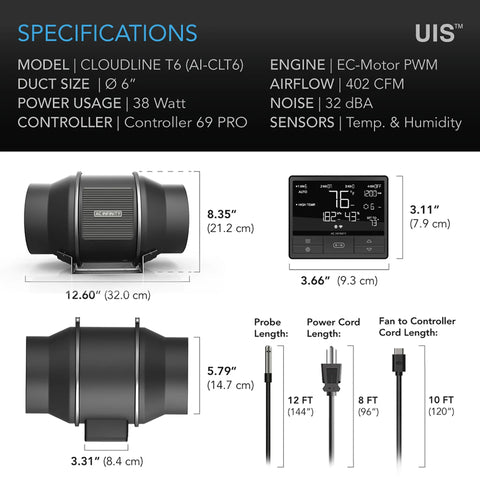

Product and Mounting Dimensions - Fan Unit
   Duct Size    6"
   Total Dimensions    7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
   Mounting Hole-To-Hole Distance    3.15 x 2.36 in. (8.0 x 6.0 cm)
   Screw Hole Size    Ø 0.236 in. (Ø 0.6 cm)
   Cord Length to Controller    240 in. (20 feet)
   Cord Length to Plug    96 in. (8 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
   Hole to Hole Distance    4.71 x 2.64 in. (12.0 x 6.7 cm)
   Screw Hole Size    Ø 0.119 in (Ø 0.3 cm)
   Display Size    3.5 x 1.4 in. (9 x 3.5 cm)
   Sensor Probe Length    144 in. (12 feet)
   Product Performance and Technical Specs
   Total Airflow    402 CFM
   Total Noise    32 dBA
   Static Pressure    503 Pa
   Voltage    100-240V AC
   Frequency    50/60Hz
   Max Power Draw    64 W
   Average Power Usage    38 W
   Current    1.67 A
   Power Connector Type    US Plug (NEMA 1-15 Type-A)
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   ETL Cert. (Whole Product)
   CE Certification (Whole Product) PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   SAA Cert. (Whole Product)
   Installation Manual PDF

   Product Manual
   Product Manual PDF
